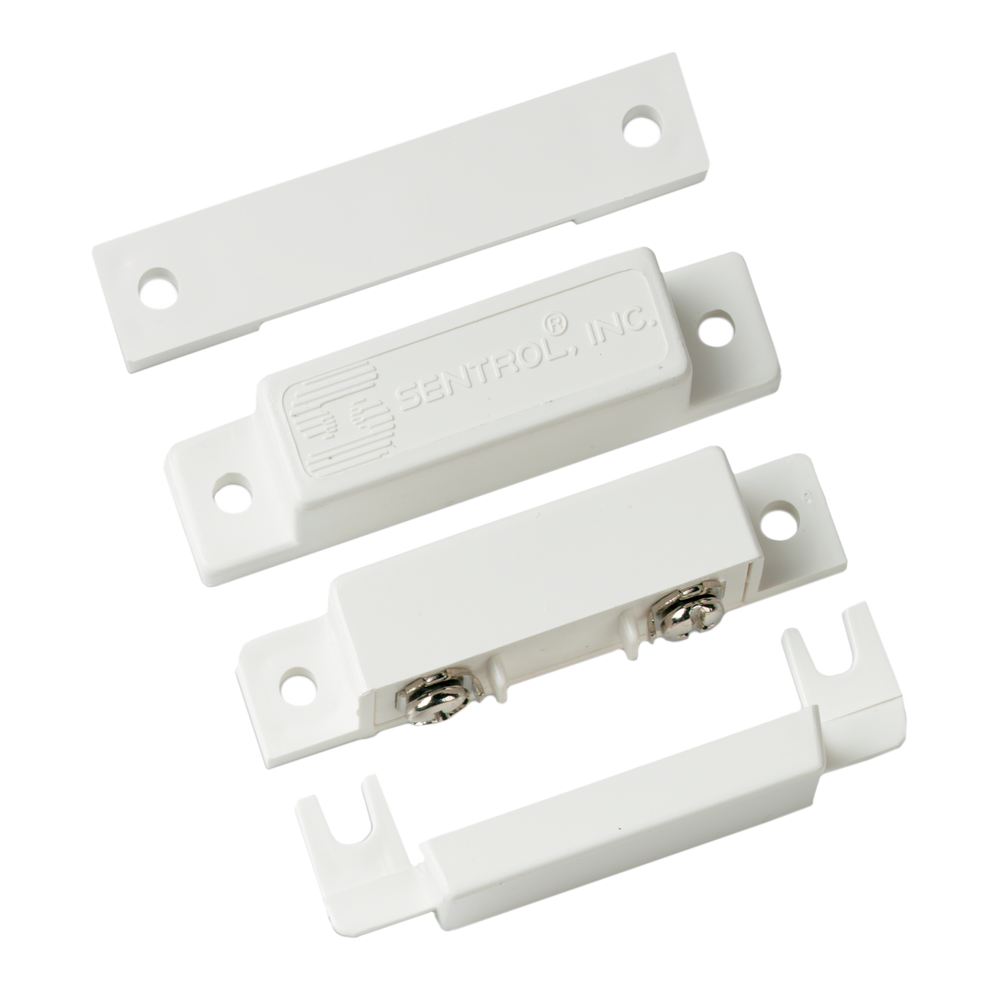

Aritech 1085T-N-3K3

Surface mount contact with screw terminals, 2 x 3K3 EOLR, white

• Easy clamping terminal speed installation
• Cover, spacer included
• Ideal for residential and commercial
• Convenient surface mounting
• Versions with built-in 3K3 resistors available

Sentrol 1085T series is ideal for residential and commercial applications where terminal connections are preferred. The unit features positive clamping terminals with anti-rotation lugs and captured screws with combination heads. These features allow for easy, quick installations. The range includes wide gap, SPDT and biased version for higher security. This makes it one of the most popular contacts available in the industry today. The Sentrol high performance magnetic contacts have been designed to facilitate installation and ensure durability and dependability. Most are conservatively rated at 10,000,000 cycles, guaranteeing a long life. Every reed connection is hand soldered and each magnetic contact is tested before they leave the factory, 100% of the time. Reed legs are plated with rhodium or ruthenium, and hermetically sealed in dry nitrogen. This offers superior protection against sticking and provides a moisture free environment therefore preventing corrosion.
