Aritech · ARITECH-000242 · Alarmpanelen – Kaartlezers

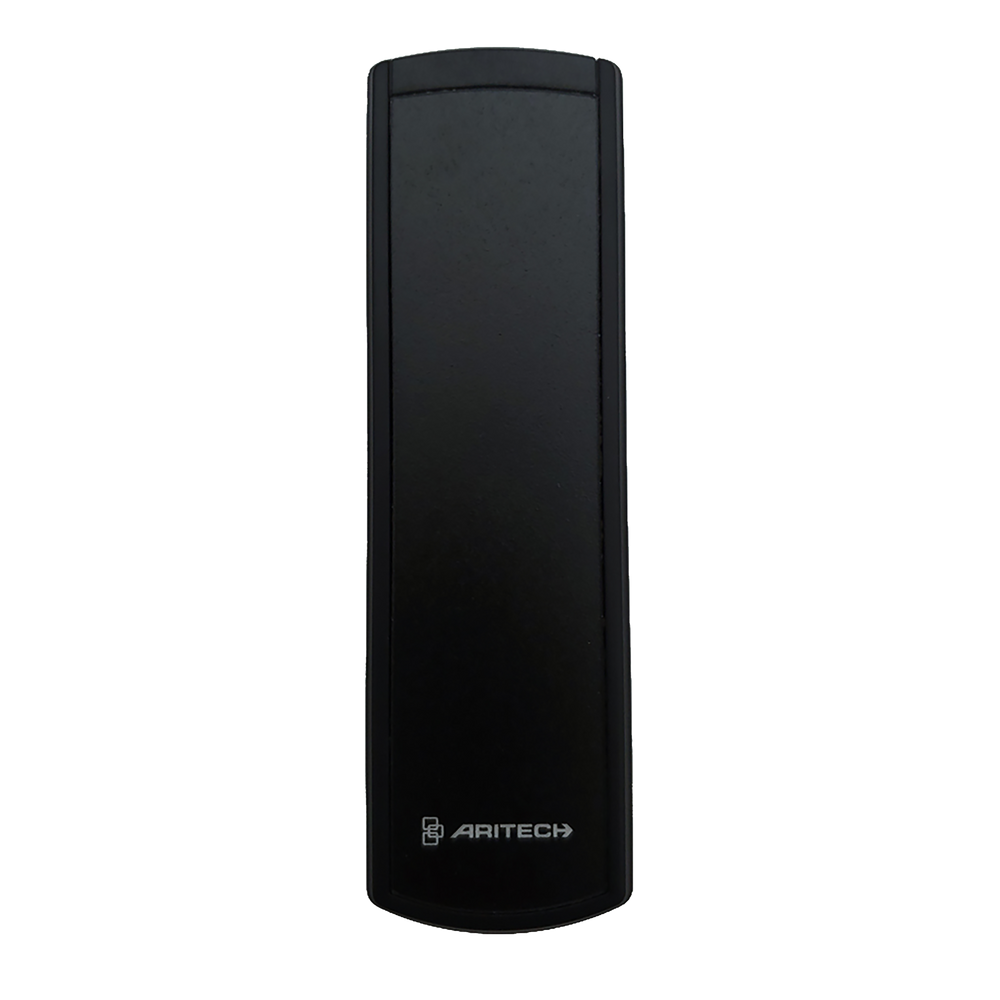

Kleur: ZwartAritech ACI420
OSDP reader, slim design, Mifare Desfire EV1/2/3, CSN & Bluetooth
- Secure OSDP Mifare Desfire EV1/EV2 reader
- Supports Mifare Desfire EV1/EV2 custom cards and CSN, as well as other Mifare CSN cards
- Address and other settings through configuration cards
- Robust molded plastic housing in slim design
- Indoor or outdoor mounting
- Request to exit input and one output
- Bluetooth BLE onboard
- Supported on CDC4 range of Door/Lift controllers
The ACI42x range of readers provides an attractive reader in slim line or standard design supporting cards with secure Mifare Desfire EV1/EV2/EV3 security. In addition the reader provides for onboard Bluetooth (BLE) support. The ACI42x-PIN variants include a PIN keypad. The ACI42x range supports security from the card up to the controller when the controller supports the security features of the OSDP V2.17 standard and the Mifare Desfire EV1/EV2/EV3 cards are encrypted.
€339,29incl. btw · €280,40 excl.
Op voorraadSpecificaties
Systeem
Leesafstand
up to 5 cm depending on technology used and environment
Max. afstand lezer tot paneel
1 km from control panel
CSN (kaart serienummer)
Ja
Aangepast datamodel
Ja
Ondersteunde kaarttypes
Mifare Classic 7 Byte UID, MIFARE® Classic UID, MIFARE® DESFire UID, MIFARE® DESFire® EV1, MIFARE® DESFire® EV2, MIFARE® Plus UID, NFC (UID)
Type adressering
Card Addressing
Aantal LED's
3 x multi-color
Technologie
Type lezer
Smart Card
Lezer zendfrequentie
13.56 MHz
Ondersteunde technologie 13,56 MHz
MIFARE DESFire (CSN), MIFARE DESFire EV1 (Aritech), MIFARE DESFire EV1 (CSN), MIFARE DESFire EV1 (custom data), MIFARE DESFire EV2 (Aritech), Mifare DESFire EV2 (CSN), Mifare DESFire EV2 (custom data), MIFARE Plus (CSN), NFC (CSN)
Ondersteunde technologie 2.4 GHz
Bluetooth
Type Mifare
ISO14443A
Aantal Mifare-bytes CSN
4 Bytes (non-unique), 4 Bytes (S50), 7 Bytes (S50), 7 Bytes (S70)
Interface & aansluitingen
Interface
OSDP V2 Secure Channel
Type aansluiting
Krulstaart
Pigtail lengte
3 m
Ingangen / uitgangen
Ingangen
Request to exit
Uitgangen
1 Open Collector (50 mA)
Type sabotage
Sabotage bij openen
Ja
Bediening
Codebediendeel
Nee
Elektrisch
Bedrijfsspanning
10 to 30 VDC
Stroomverbruik
50 mA @ 13.8 VDC normal, 120 mA @ 13.8 VDC max.
Fysiek
Fysieke afmetingen
148 x 45 x 26 mm
Kleur
Zwart
Materiaal
Plastic
Vormfactor
Slimline
Type montage
Oppervlaktemontage
Omgeving
Bedrijfstemperatuur
-30 to +55°C
Relatieve vochtigheid
max 95% noncondensing
Omgeving
Binnen, Buiten
IP-classificatie
IP67, IK09
Regelgeving
Conformiteit
CE
Certificering
CE
