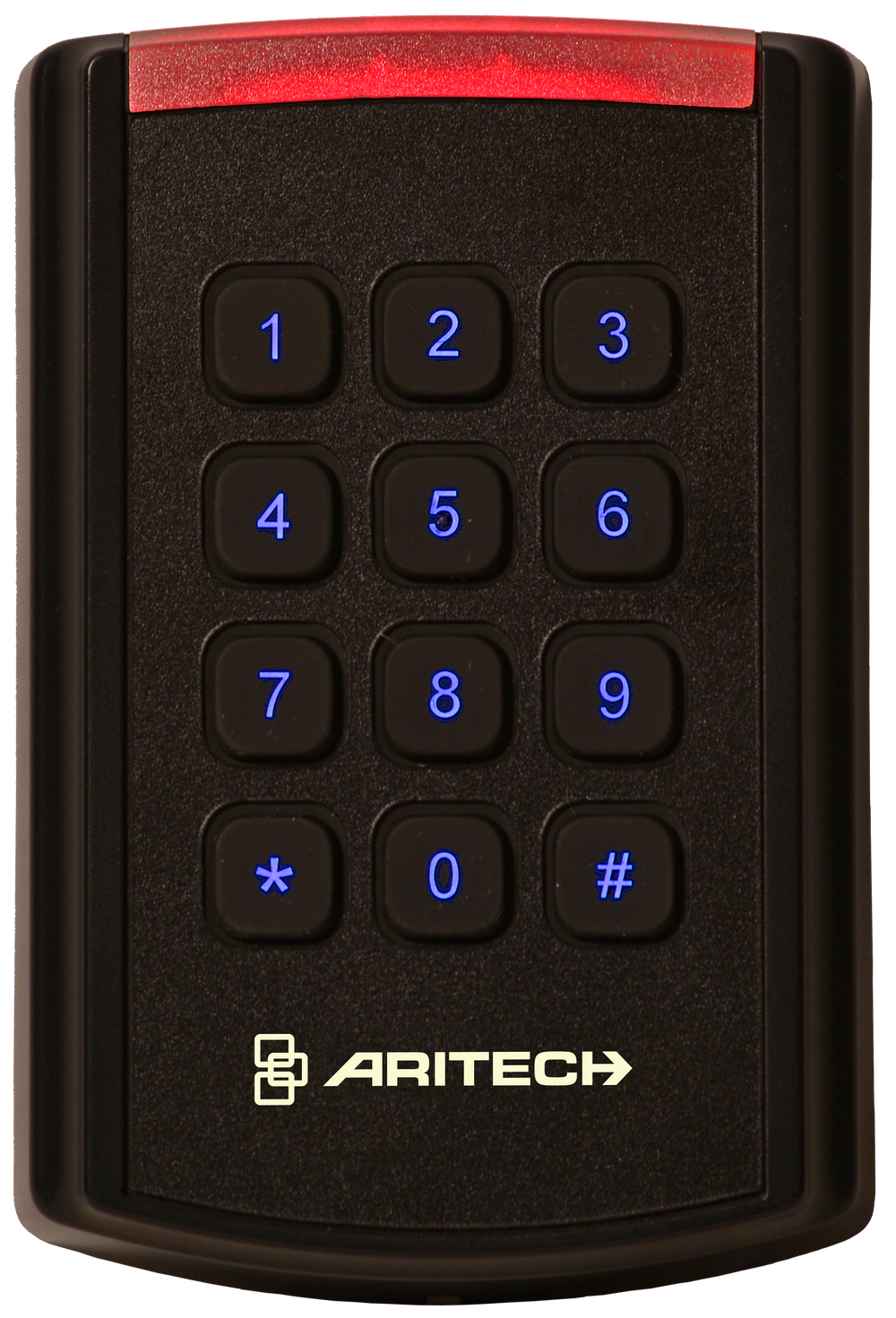

Aritech ATS1188

Secure MIFARE DESFire EV1/EV2/EV3 card reader with output and RTE input in slim design, compatible with mobile credential, Aritech ID (Bluetooth).

• Secure ATS MIFARE DESFire EV1/EV2/EV3 reader
• Compatible with Mobile credential Aritech ID.
• Supports Secure Mifare (secure mode) or Mifare 4 or 7 byte CSN/UID (Unsecure mode)
• Use secure ATS145x series cards or customer cards
• Secure communication using AES-128 bits encryption between reader and Advisor Advanced / Everon panel
• Robust molded plastic housing in slim design
• Indoor or outdoor mounting
• ATS bus interface
• Request To Exit input
• Open Collector Output (door open)
• Supported as of Advisor Advanced from MR4.13 and Everon MR4.3
• NFC prepared for configuration purposes

The ATS MIFARE DESFire EV1/EV2/EV3 readers connect directly to the control panel using the ATS databus. Communication to Everon, Advisor Advanced control panels is AES encrypted. In secure mode, card to reader data is also AES encrypted providing secure communication from the card to the processing unit. The readers are configured locally through keypad and control panel and with the ATS85x0 and the address is configured using the ATS1482 addressing card. Select secure cards from the ATS145x secure card series. The reader is compatible with mobile credentials of Aritech ID. The reader offers a Request To Exit input and one open collector output that can be used to control a door relay. The ATS1188 Mifare Desfire reader is designed to transfer card data in a secure and reliable way in various environments. The card data is by default secured by an Aritech own security key, but can be changed easily in Advisor Advanced or Everon control panels to any custom required key. The readers can optionally be set to read MIFARE CSN numbers instead in unsecure mode. The reader communicates in a secure way over the ATS LAN databus to Everon or Advisor control panels using AES encryption, securing the data from the card until being processed. The unique design of the housing guarantees that the reader can be used in the most demanding surroundings having IP67 and IK-09 rating. The reader can be installed directly on to a metal surface without any insulation.
