Aritech ATS1235
Advanced draadloze ontvanger, 868MHZ AM
- Expands the Axon panel or the Advisor Advanced panel with 32 wireless zones
- 868 MHz Wireless GEN2 Sensors
- Quick configuration using the Aritech "Learn Mode" technology
- Features spatial diversity to minimize wireless dead spots and has a nominal open-air receiving range of 460 m
- Use the Aritech 868 MHz repeater to improve range
- Powered from the control panel databus or a remote auxiliary power supply
- Fob buttons may be programmed for users to arm and disarm or to control relays
- To remotely open and close a garage door as well as arm or disarm an office security system

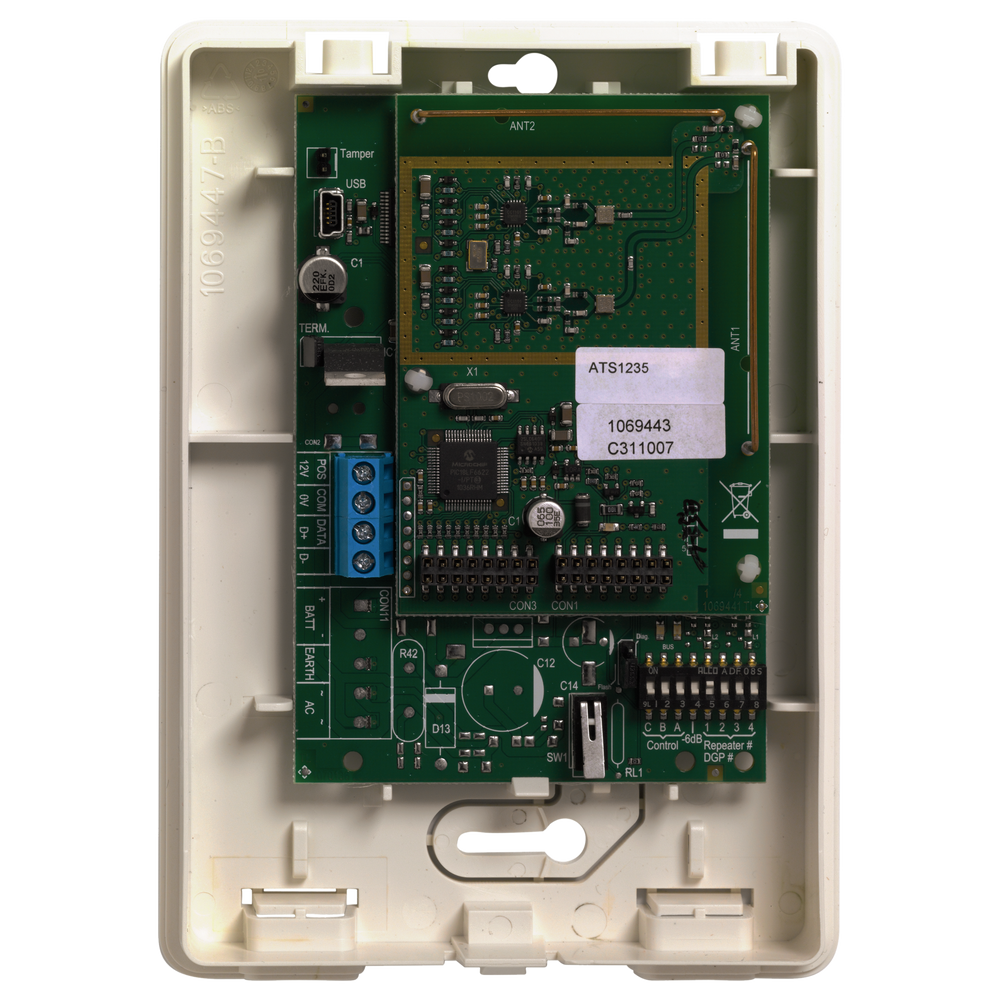

The ATS1235 Advanced Wireless Data Gathering Panel (DGP) receiver adds wireless capabilities to the Axon, Advisor Advanced & Master panels using Aritech 868 MHz Gen 2 Wireless Sensors: i.e. PIR, Glassbreak etc. Maximum distance from the panel is 1500 m. The ATS1235 features spatial diversity to minimize wireless signal nulls or dead spots and has a nominal open-air receiving range of 400 m. If dead spots need to be eliminated, a 868 MHz repeater may be used. It can be powered from the control panel databus or a remote auxiliary power supply. Fob buttons may be programmed for users to arm and disarm or to control relays. With ATS1235 Advanced wireless expanders, the control panel becomes a hybrid system where one can optimize the system by distributing receivers in the premises.
