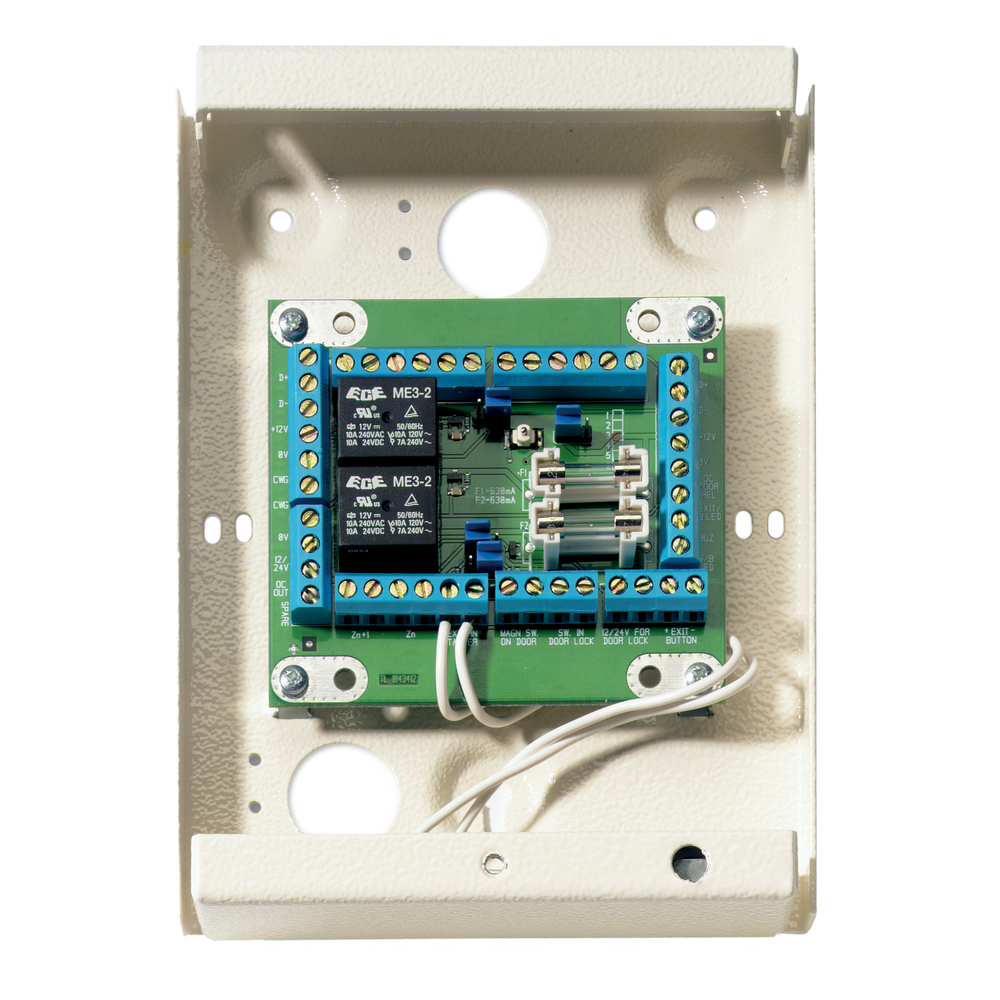

Aritech ATS1340

Universele aansluitbox voor aansluiting van een deur met toegangsverlening.

• Universal door interface for connecting all cables in door application
• Will reduce installation time dramatically
• Connections fully attuned at the Aritech Smart card reader
• Inputs connections for door contact and door lock contact
• Dual loop resistors already provided in the input connections
• Output connections for door lock and buzzer
• All connections short circuit protected
• Maximum up to 16x ATS1340 can be connected to the bus

The ATS1340 is designed as a universal door junction box. The module has an incoming and outgoing data bus / power connection to achieve a proper star connection for an Advisor MASTER bus reader. On board relays are provided to connect a door lock and a pre-warning buzzer. For high-energy locks an external 12V or 24V power supply must be connected. The ATS1340 PCB can be mounted in any Advisor MASTER cabinet, which supports the size B board. Preferably, the door junction box should be mounted close to a door which needs access control and / or alarm facilities.
