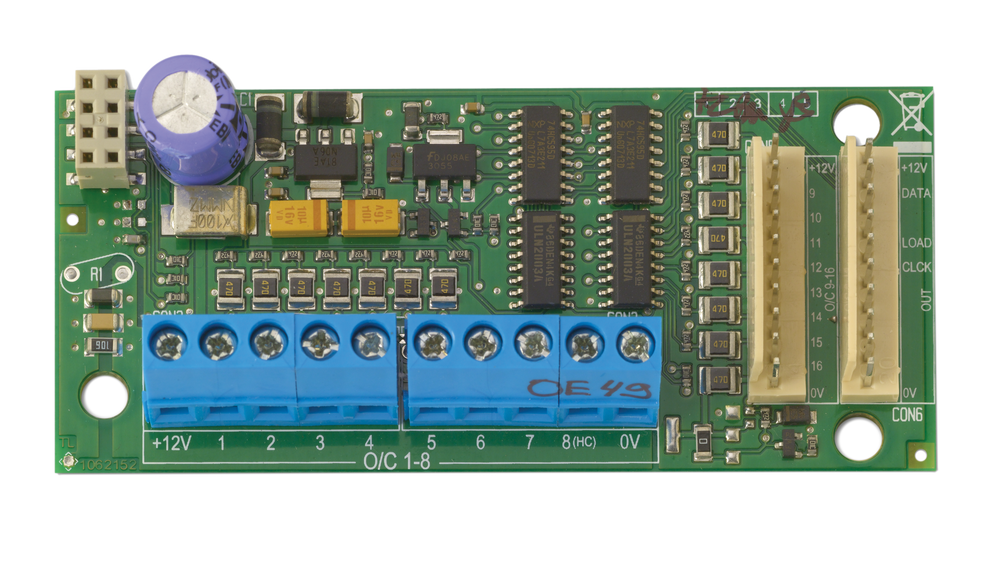

Aritech ATS626
ATS Advanced Plug-in 8-16 uitgangen, uitbreidbaar met 2x ATS810.
- Expand Axon and Advisor Advanced panels with 8-open collector outputs on the PCB
- Expand with max 8-relay outputs using 2 x ATS1810 4-way relay card
- 1 high current output (1A)
- Open collector output max 50 mA
- Plug-in to Axon and Advisor Advanced panels
The ATS626 offers a 16-way output expansion to Axon and Advisor Advanced panels. To reduce required space in the Main control panel housing, the unit is a plug-in to the Main Control panel PCB. The ATS626 provides for eight Open Collector outputs available through screw terminals, one being a high-current output. In addition, it provides for eight open collector outputs through flying leads or as a relay when using ATS1810 four way relay cards. The output function is defined through the output configuration in the main control panel.
€117,29incl. btw · €96,93 excl.
Op voorraadSpecificaties
Algemeen
Type utbreiding
Uitgangsuitbreiding
Productlijn
Advisor Advanced, Axon
Type aansluiting
Plug-in
Max. afstand van paneel
Located on the panel PCB
Max. per paneel
1
Uitgangen
Totaal
16
Onboard
8
Uitbreidbaar
8 (2x ATS1810)
Type uitgangen
Open collector
Elektrisch
Bedrijfsspanning
10.5 to 13.8 VDC
Stroomverbruik
50 mA (Low current OC), 1 A (High current OC)
Fysiek
Fysieke afmetingen
90 x 40 mm
Omgeving
Bedrijfstemperatuur
0 to +50°C
Relatieve vochtigheid
95% noncondensing
Omgeving
EN50130-5 ; Klasse II - Binnen (algemeen)
Regelgeving
Conformiteit
CE
Certificering
CE, EN50131 Grade 3, VdS
