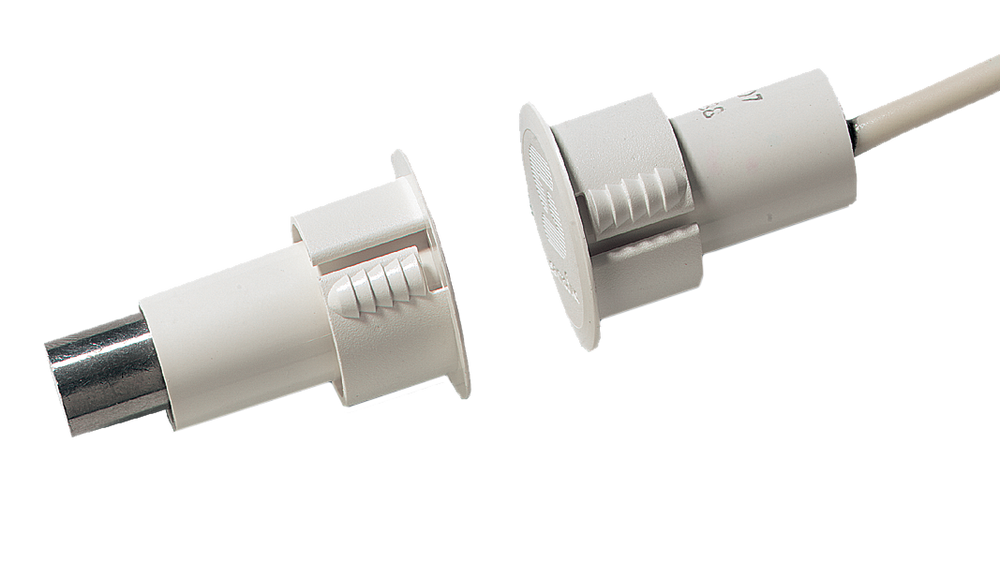

Aritech DC107S60

Inbouwcont., sabotagelus, 2,5m, wit, ±9mm, NC. Incl 6m kabel. VDS klasse B

  • Special design for steel mounting
  • Self-lock mounting
  • Comprehensive product range
  • Standard 2 m wire length
  • Tamper loop provided
  • Built-in resistors available to special order

The DC107/124/125/887/888 contacts are designed specifically for use in steel doors commonly found in commercial building applications. Many models including, wide gap, CO and biased for high security applications make the series the most widely used and comprehensive line available. The unique housing design features a rugged unibody construction with flexible ribbed sides for quick, secure installation without gluing. The magnet housing isolates the magnet from the surrounding steel for maximum gap distances, both make and break.

€21,92incl. btw · €18,12 excl.
Op voorraad
Levertijd 2–3 werkdagen · gratis verzending vanaf €250 · 30 dagen retour
Specificaties
Algemeen
Type toepassing Verzonken montage
Type contact NC
Aansluiting 4 wires, 6 m
Bedraad / draadloos
Bedraad / draadloos Bekabeld
Werkingsafstand 9 mm (max.)
Fysiek
Fysieke afmetingen 22 x 39 mm (Ø x H)
Boorgatdiameter 19 mm
Regelgeving
EN50131 Grade Grade 2
