Aritech DC108

Poort/overheadcontact, alu uitvoering, 2m kabel, afstand ±75 mm, NC.

• Miniature, low-profile design
• Stainless steel armoured cable for added security, reliability
• Wide working gap for overhead doors
• Small size less likely to be damaged by forklifts
• Tamper loop provided

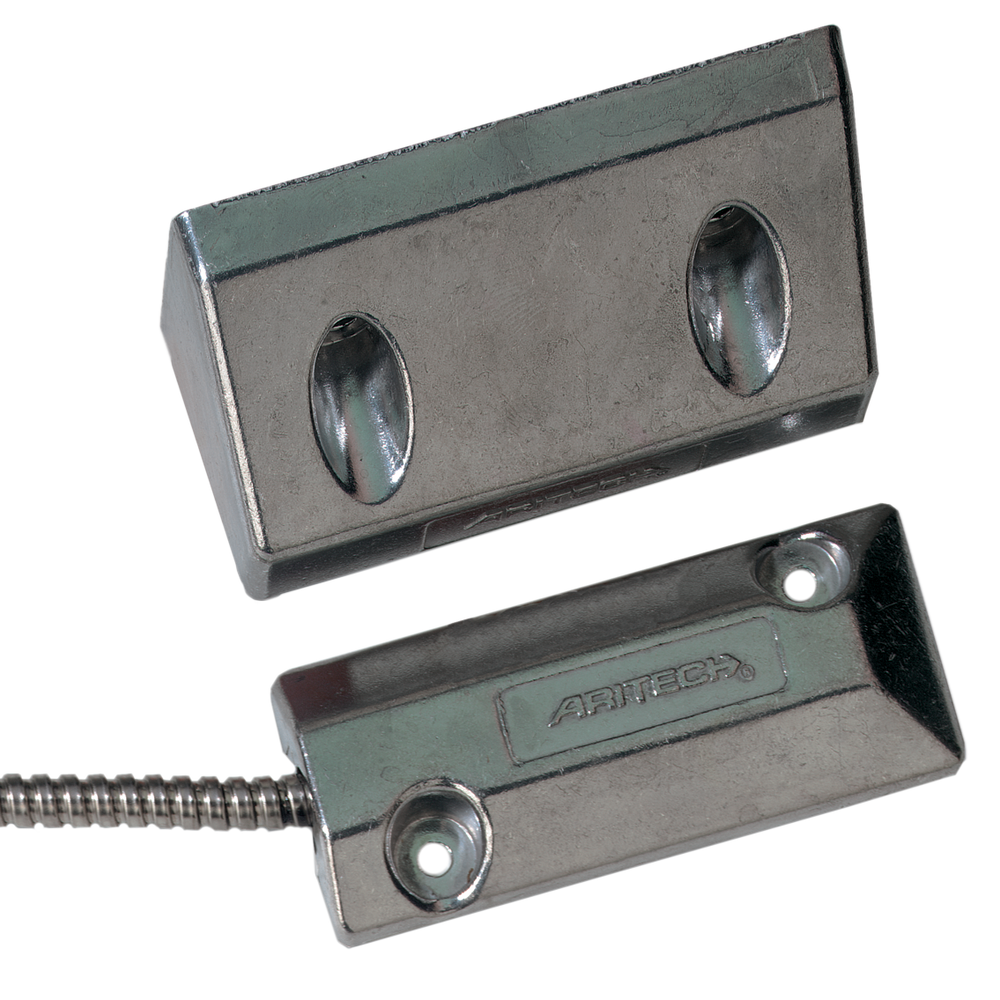

The DC108 series overhead door magnetic contact is for use in the rigorous environments of commercial and industrial installations. The floor mount units are constructed with a low profile heavy cast aluminium housing. The reed switch assembly is fully encased in an exclusive polyurethane potting material to prevent damage due to moisture or humidity. A wide operating gap distance of up to 7.5 cm makes installation easy and helps prevent false alarms caused by door movement or damaged and loose fitting doors.
