Aritech · ARITECH-000290 · Magneetcontacten – Accessoires

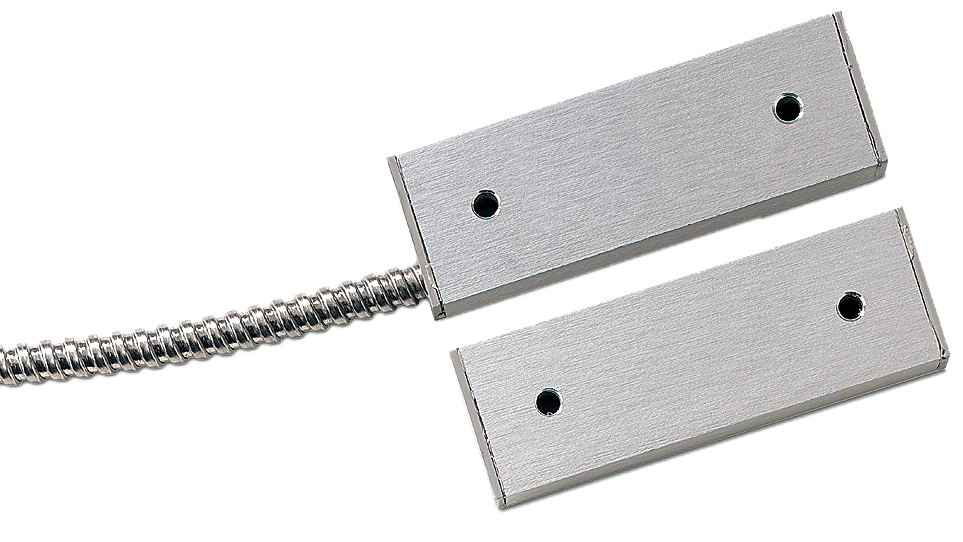

Kleur: ZilverAritech DC118
Poort/overheadcont., sabo.lus, 2m kabel, schakelafstand ca. 75 mm, NC
- Mounting brackets available for gates, garage doors, freezers
- Rugged construction for long life
- Convenient surface mounting
- 2 m armoured cable
- Tamper loop provided
- DC115 is polarity-sensitive with reference to magnet direction
The DC115/DC118 are designed to be installed in commercial and industrial environments where a rugged sealed unit is required. It is ideal for metal doors, overhad doors, fences and gates. Each model features a high strength extruded aluminium housing and is completely encapsulated in an exclusive polyurethane potting compound. The range features wide gap distances and several models to meet any application need. Armoured cable is available.
€72,66incl. btw · €60,05 excl.
Op voorraadSpecificaties
Algemeen
Type toepassing
Bovenhangend
Type contact
NC
Aansluiting
4 wires, 2 m
Bedraad / draadloos
Bedraad / draadloos
Bekabeld
Werkingsafstand
75 mm (max.)
Fysiek
Afmetingen magneet
76 x 12 x 25 mm
Afmetingen contact / sensor
76 x 12 x 25 mm
Kleur
Zilver
Materiaal
Geanodiseerde aluminium afwerking
Regelgeving
EN50131 Grade
Grade 2
