Aritech · ARITECH-000301 · Magneetcontacten – Accessoires

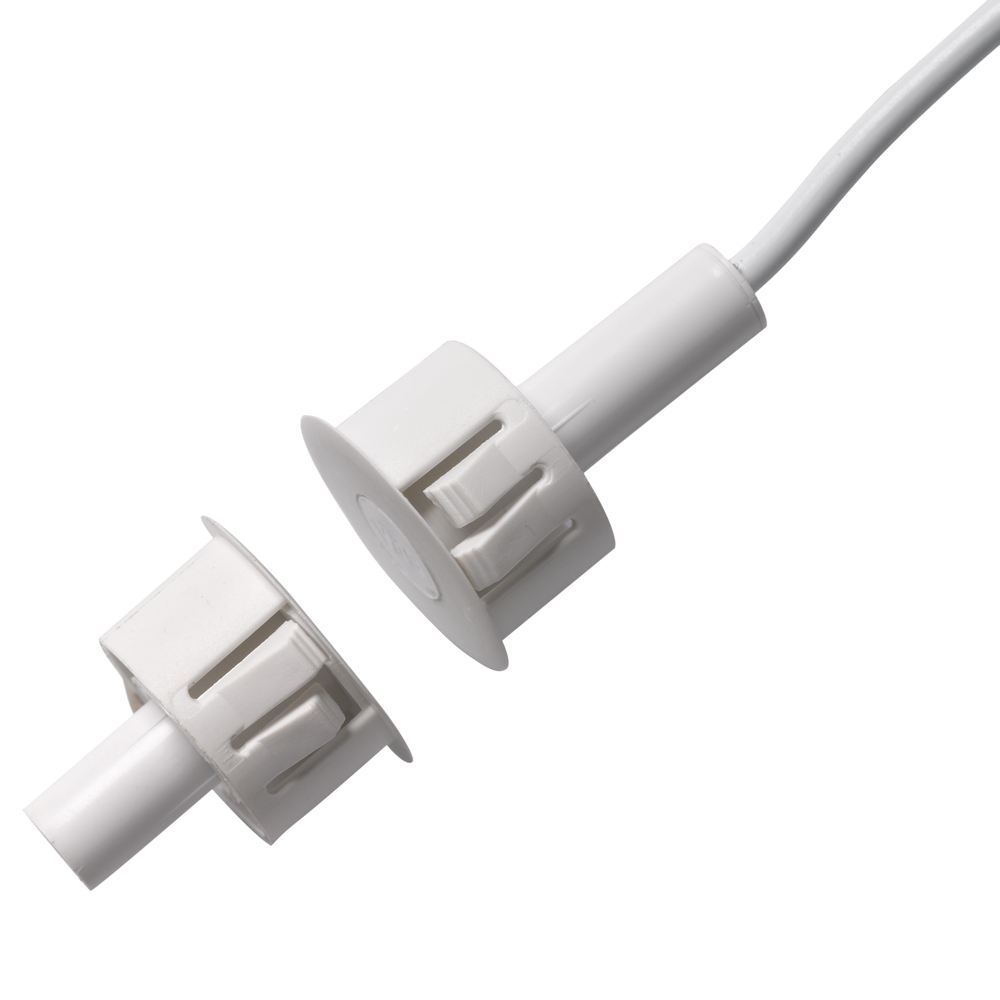

Kleur: WitAritech DC138R4.7
Inbouwcont., met flens, 2m kabel, 2 weerstanden 4k7. REQ Security grade 3
- EN 50131-2-6 Grade 3 and VDS certified
- 2m cable
- Tamper protected
- Built in 4k7 EOL resistor
- Several European certifications
The grade 3 magnetic contacts are high security contacts which do meet the following requiments: preciseness of opening distance, magnet polarisation, strength of the magnet Though built in EOL resistors are not mandatory according to EN50131-2.6 requirements, Interlogix offers a model with built in EOL resistors for a quick installation (see how to Order information)
€40,99incl. btw · €33,88 excl.
Op voorraadSpecificaties
Algemeen
Type toepassing
Verzonken montage
Type contact
4K7 end-of-line resistor
Aansluiting
LIYY 4 x 0.14 mm Cu tin-plated; Suitable for LSA IDC method of termination
Bedraad / draadloos
Bedraad / draadloos
Bekabeld
Werkingsafstand
12 mm (+/- 3 mm)
Elektrisch
Bedrijfsspanning
>250 V (breakdown voltage), max. 40 V (permissible operating voltage)
Spanning
max. 100 VDC
Contactvermogen
max. 6 W or 6 VA
Schakelstroom
max. 500 mA
Contactweerstand
max. 0.15 Ohm
Fysiek
Fysieke afmetingen
Ø 3.2 mm x 2 m (cable dimensions)
Afmetingen magneet
6 x 19 mm neodymium, axially polarized, in Ø 8 x 20 mm plastic sleeve with installation flange EF 8/20
Afmetingen contact / sensor
8 x 32 mm with installation flange EF 8/20
Kleur
Wit
Materiaal
ABS
Omgeving
Bedrijfstemperatuur
-25 to 70°C
Omgeving
EN50130-5 ; Klasse III - Buiten (beschut)
IP-classificatie
IP67
Regelgeving
EN50131 Grade
Grade 3
Certificering
VdS
