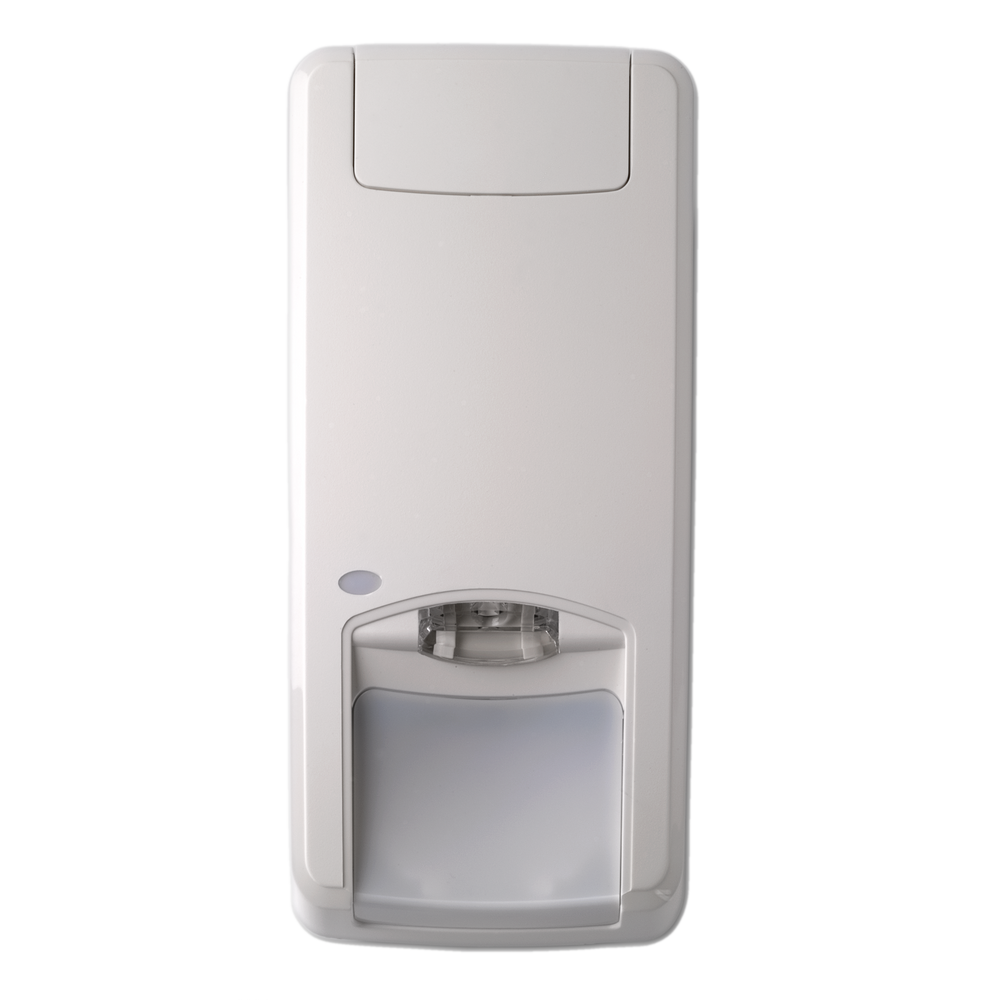

Aritech DD1012AM-D-N

12 m, Dual Technology, 9 curtains, VdS/EN Grade III, Anti-Mask, digital pyro

• Patented selectable range gated radar technology clearly defining the radar detection border
• PIR technology with patented mirror curtain optics
• Anti-masking variant using Active Infrared and radar technology to protect against sabotage actions outside and inside of the motion sensor
• Intelligent alarm decision based on signal classification of the PIR and radar alarm
• Automatic continuous self diagnostics on all technologies
• Green mode : option to switch off the radar technology when the security system is not armed
• Incorporates a new digital pyro that detects the temperature fluctuations with high degree of precision

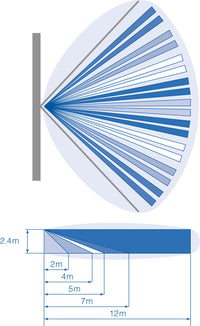

Motion sensors of the DD1000 Series incorporate a Carrier Fire & Security patented and unique range gated radar technology allowing the installer to define a clear borderline of the radar range as the radar is used to measure distance between the sensor and moving objects. Effectively the end-user will get rid of any nuisance alarms generated by movements outside the detection pattern. Every motion sensor comes with 4 possible radar ranges selectable via dip switches allowing the detection pattern to be tailored according to the room where the motion sensor is installed. The radar operates on 5.8GHz frequency and will not interfere with any WIFI networks. The DD1012AM-D-N motion sensor incorporates a new digital pyro for an improved signal quality and a better immunity to electrical interferences. Our patented optical mirror technology gives the advantage of gliding focus, which creates a continuous detection curtain from floor level up to installation height. Within our DD1012 series we are using a dual element pyro generating 2 volumetric curtains for each of the 9 curtain sets. These dual tech motion sensors generate an alarm depending on what both technologies – range gated radar and PIR – saw within its detection coverage. But our dual tech go beyond a simple “AND” function : it classifies the signals from each technology – range gated radar and PIR – to have the best alarm result without being sensitive for nuisance signal sources. This technology creates a uniform sensitivity in all course directions.
