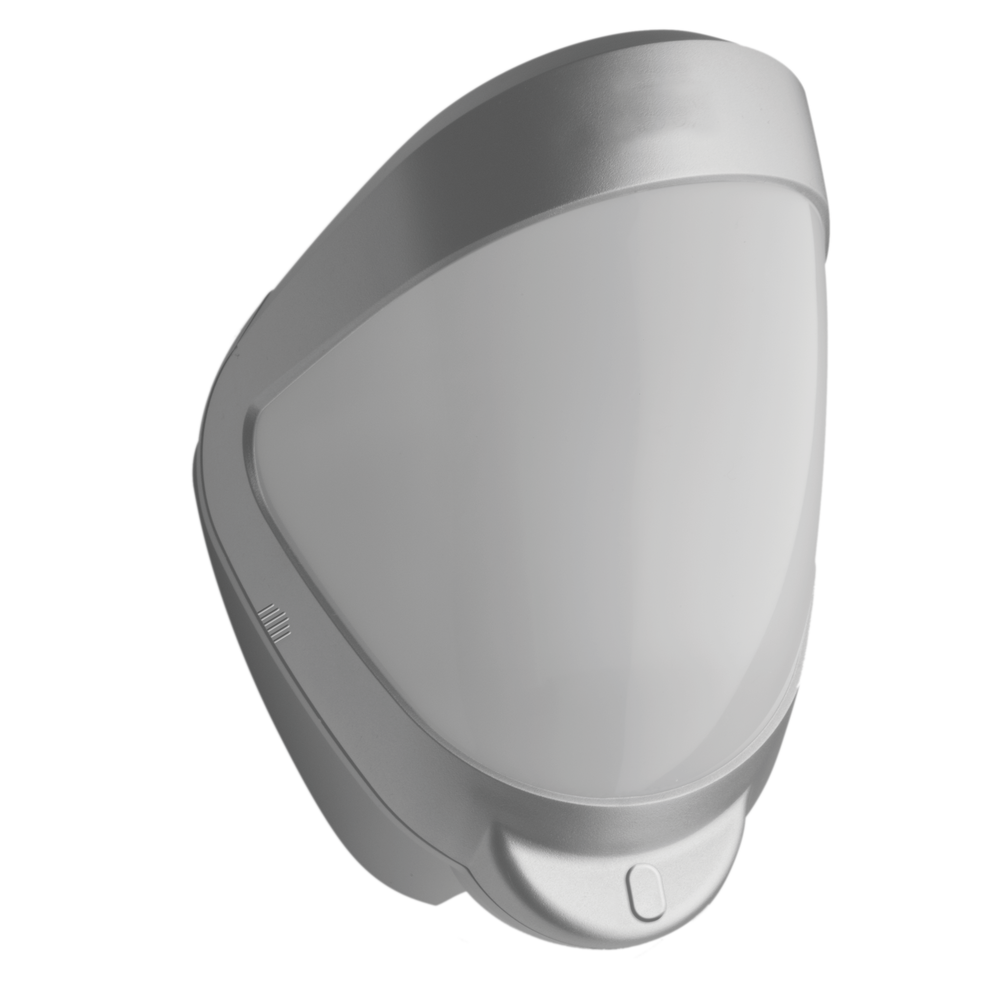

Aritech DDI602AM-F1

10.525 GHz Dual detector met anti-masking voor buiten 10/20/30 m instelbaar

• Electronic range setting: 10/20/30m
• Attractive aesthetics
• 10 to 70º detection angle
• -45° to +45° pan and +45º tilt for flexible install
• Sensor module is hidden
• Built-in EOL resistors with triple EOL configuration capability
• High dust & humidity resistance (IP55)
• 5 years warranty
• EN Grade III certified

DDI602AM-F1 Outdoor Dual Technology/AM Detector is an outdoor motion detector and alarm trigger using two independent passive infrared elements plus a microwave sensor module. In addition it has an Anti-Masking functionality achieved by active infared technology that will detect masking events as required by the EN Grade III standard. DDI602AM-F1 delivers precise, reliable presence detection. Programmable options include a LED enabling/disabling function, a variable pulse count and a choice of three detection ranges: 10 m, 20 m, 30 m. The motions sensor includes jumpers that let you configure internal end-of-line (EOL) resistor values, when EOL resistors are required. You even have the feature to use the triple EOL resistor values configuration in order to have different EOL resistor values for a detector fault and a masking event. Moreover, the integral dual-axis tilt sensor allows -45° to +45° of pan and +45º of tilt, which increases the speed of the outdoor installation and provides incredibly accurate aiming of the detection pattern. The design has a neat and professional appearance that gives no visible indication of the orientation of the detector head and totally hides the wiring.
