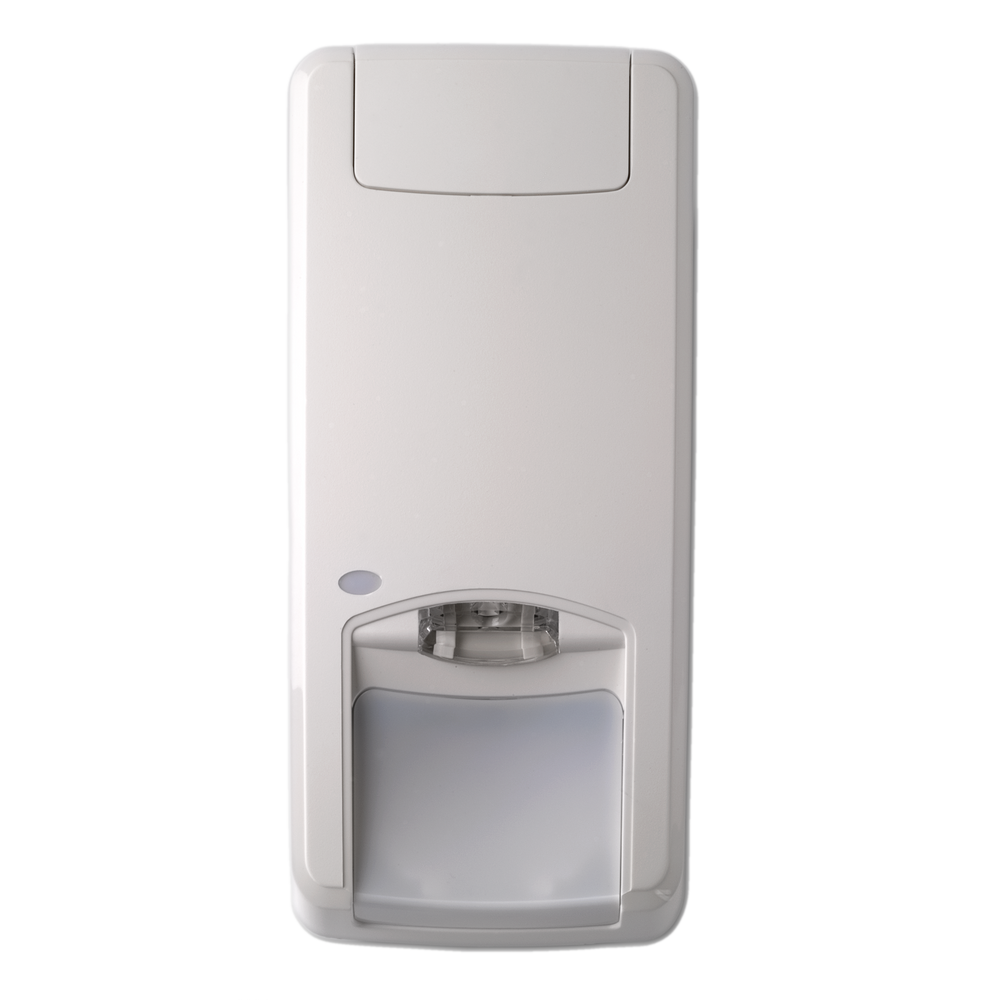

Aritech DDV1016AM-N

16 m, Dual Vector, 9 curtains, anti-mask, digital pyro, neural algorithm

• Patented selectable range gated radar technology clearly defining the radar detection border
• PIR technology with patented mirror curtain optics
• Anti-masking variant using Active Infrared and radar technology to protect against sabotage actions outside and inside of the motion sensor
• Intelligent alarm decision based on signal classification of the PIR and radar alarm
• Automatic continuous self diagnostics on all technologies
• Green mode : option to switch off the radar technology when the security system is not armed
• Holding several security approvals including EN Grade III
• Patented algorithm for better false alarm immunity
• Incorporates a new digital pyro that detects the temperature fluctuations with high degree of precision
• Incorporates a brand new neural algorithm to filter out unwanted alarms

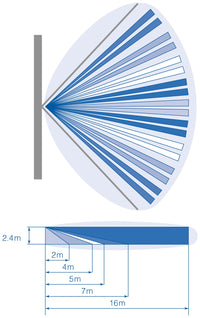

Motion sensors of the DD1000 Series incorporate a Carrier Fire & Security patented and unique range gated radar technology allowing the installer to define a clear borderline of the radar range as the radar is used to measure distance between the sensor and moving objects. Effectively the end-user will get rid of any nuisance alarms generated by movements outside the detection pattern. Every motion sensor comes with 4 possible radar ranges selectable via dip switches allowing the detection pattern to be tailored according to the room where the motion sensor is installed. The radar operates on 5.8 GHz frequency. The DDV1016AM-N motion sensor incorporates a new digital pyro and a brand new algorithm to filter out unwanted alarms. Thanks to these two technologies, a better quality of signals is generated. The advanced processing combined with a better detection performance result in an extreme low rate of unwanted alarms. Our patented optical mirror technology gives the advantage of gliding focus, which creates a continuous detection curtain from floor level up to installation height. Using a four element pyro, so generating 4 volumetric curtains for each of the 9 curtain sets, in combination with our VE-techniques allowed us to create a 16 m dual tech motion sensor in a rather small housing. These dual tech motion sensors generate an alarm depending on what both technologies – range gated radar and PIR – saw within its detection coverage. But our dual tech go beyond a simple “AND” function : it classifies the signals from each technology – range gated radar and PIR – to have the best alarm result without being sensitive for nuisance signal sources. This technology creates a uniform sensitivity in all course directions.
