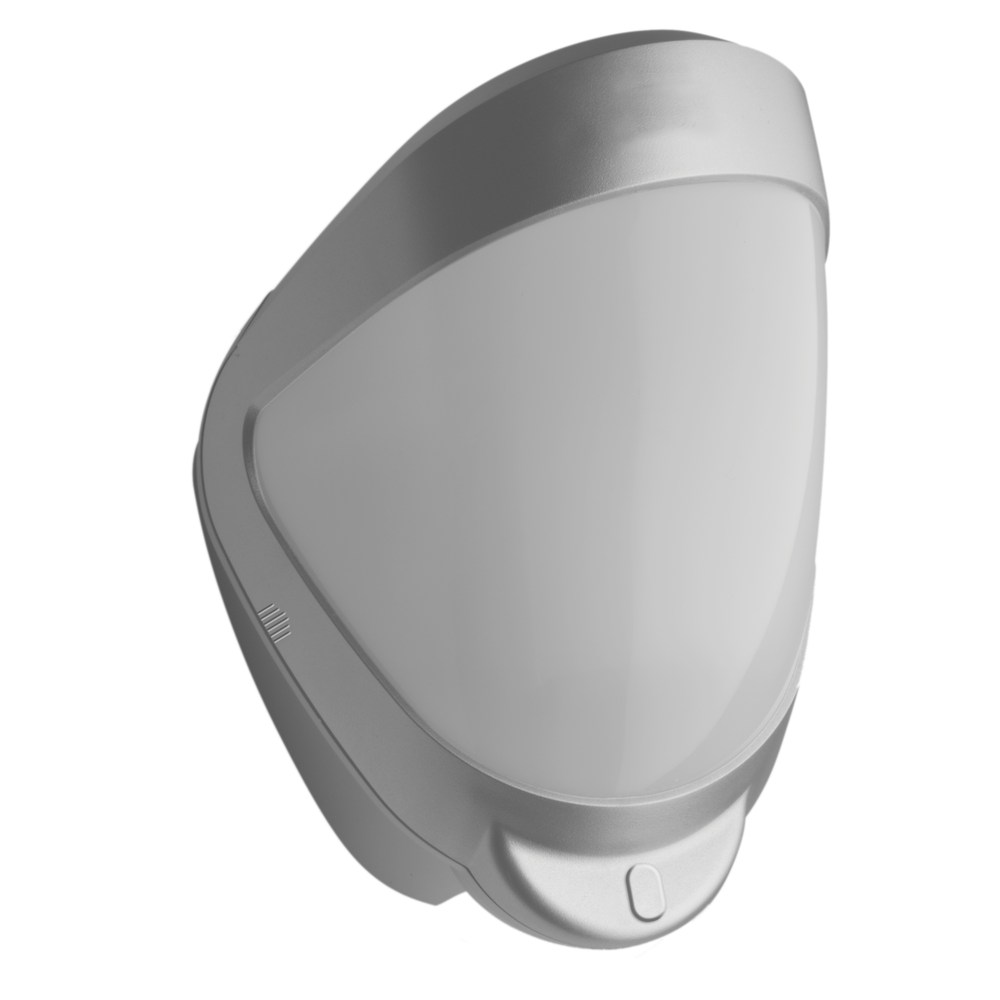

Aritech DI601

Microprocess. PIR, buitendetector, selecteerbaar 10/20/30 m, ENgrade2 klasse 4, incert

• Electronic range setting: 10/20/30m
• Attractive aesthetics
• 10 to 70º detection angle
• 180º pan & 90º tilt for flexible install
• Sensor module is hidden
• Built in EOL resistors
• High dust and humidity resistance (IP55)
• 5 years warranty

DI601 Outdoor PIR Detector is an outdoor motion detector and alarm trigger that uses two independent passive infrared detectors. Both sensors must trigger to cause the detector to signal an alarm. DI601 uses quad pyro technology to deliver precise, reliable presence detection. Programmable options include a variable pulse count and a choice of three detection ranges: 10 m / 33 ft., 20 m / 66 ft., and 30 m / 98 ft. DI601 includes jumpers that let you configure internal end-of-line (EOL) resistor values, when EOL resistors are required. Moreover, the integral dual-axis tilt sensor allows 180º of pan and 90º of tilt, which increases the speed of the outdoor installation and provides incredibly accurate aiming of the detection pattern. DI601 design has a neat and professional appearance that gives no visible indication of the orientation of the detector head and totally hides the wiring.
