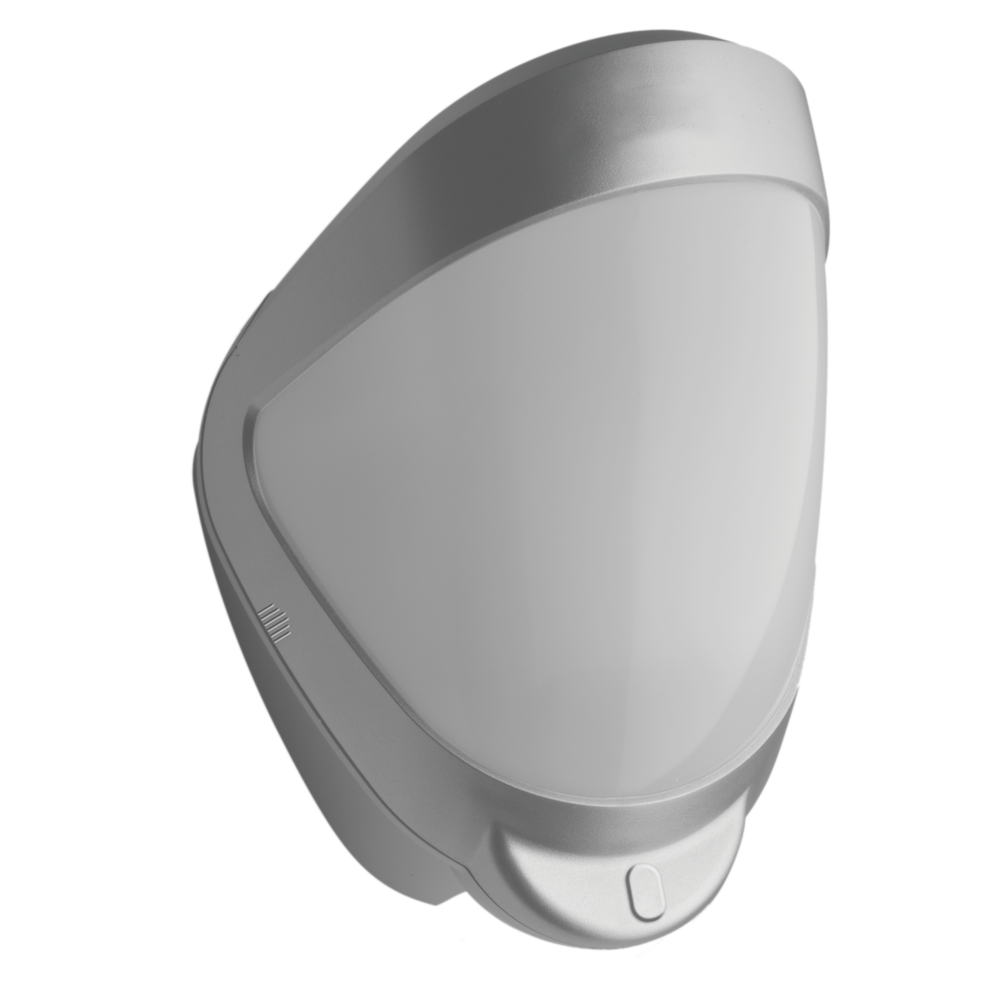

Aritech DI601AM

PIR met anti-masking detectie voor buiten, selecteerbaar 10/20/30 m

• Electronic range setting: 10/20/30m
• 10 to 70º detection angle
• -45° to +45° pan and +45° tilt for flexible install
• Sensor module is hidden
• Built-in EOL resistors with triple EOL configuration capability
• High dust and humidity resistance (IP55)
• 5 years warranty

DI601AM Outdoor PIR/AM Detector is an outdoor motion detector and alarm trigger using two independent passive infrared elements. The Anti-Masking functionality is achieved by active infared technology and will detect masking events as required by the EN Grade III standard. DI601AM delivers precise, reliable presence detection. Programmable options include a LED enabling/disabling function, a variable pulse count and a choice of three detection ranges: 10 m, 20 m, 30m. DI601AM includes jumpers that let you configure internal end-of-line (EOL) resistor values, when EOL resistors are required. You even have the feature to use the triple EOL resistor values configuration in order to have different EOL resistor values for a detector fault and a masking event. Moreover, the integral dual-axis tilt sensor allows -45° to +45° of pan and +45º of tilt, which increases the speed of the outdoor installation and provides incredibly accurate aiming of the detection pattern. DI601AM design has a neat and professional appearance that gives no visible indication of the orientation of the detector head and totally hides the wiring.
