Home / Alarmsystemen / Bewegingsdetectoren / Aritech EVERON-BLINX-PROMO
Aritech · ARITECH-000387 · Bewegingsdetectoren – PIR

Aritech EVERON-BLINX-PROMO

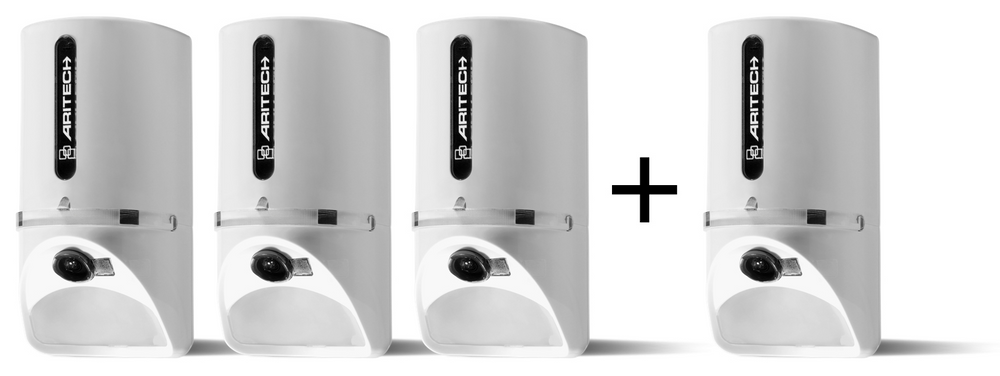

Everon Blinx - Wired PIR sensor with integrated camera - Promo 3+1

  • Promo 3 + 1
  • Up to maximum 6 Everon Blinx's per Everon system (*)
  • 4-wire bus connection supporting distances up to 100 meters
  • 9 high-density mirror curtains for precise motion detection
  • Uses UltraSync protocol for secure and reliable communication
  • Automatic switching between day and night modes
  • Real-time video streaming via Edge API directly to CMS
  • Pre- and Post-trigger recording
  • Integrated with the Advisor Advanced Mobile Application
  • Configuration through the Everon Web Application

The Everon Blinx is a combination of a passive infrared detector (PIR) and a built-in high resolution colour camera as part of the Everon intrusion platform. The Everon Blinx helps to distinguish between true and false alarms thus increasing overall efficiency and improving response to alarms. As a result, the Everon Blinx is a valuable enhancement to any residential or commercial security system, offering visual verification of alarm events. This enables operators at Central Monitoring Stations to prioritize follow-up actions more effectively. The Everon Blinx cylindrical shape and curved front surface give it a sleek, modern appearance that blends into various environments. The front-facing camera lens subtly integrated, indicates its focus on discrete surveillance. The camera’s field of view and contrast are optimized to deliver high-quality video, even in low-light or nighttime conditions, eliminating the need for manual adjustments. Monitoring stations receive recorded streaming video rather than a series of still images, enabling more effective alarm verification. Additionally, end-users can access the Everon Blinx live video or recorded video clips through the App when connecting to the Everon security system.

Kleur: Wit
€754,68incl. btw · €623,70 excl.
Op voorraad
Levertijd 2–3 werkdagen · gratis verzending vanaf €250 · 30 dagen retour
Specificaties
Algemeen
Technologie PIR
Anti-maskering Nee
Ongevoelig voor huisdieren Nee
Camera Ja
Opstarttijd detector 60 s
Detectie
Detectiebereik 12 m
Aantal gordijnvelden 9
Bedraad / draadloos
Bedraad / draadloos Bekabeld
Elektrisch
Waarde voeding 9 to 28 VDC (12 VDC nominal)
Stroomverbruik Night mode: 142 mA max., day mode: 100 mA max.
Fysiek
Fysieke afmetingen 128.0 x 64.4 x 68.0 mm
Netto gewicht 185 g
Kleur Wit
Montagehoogte 2 to 3 m
Omgeving
Bedrijfstemperatuur −10 to +55°C
Relatieve vochtigheid 95% max., noncondensing
IP-classificatie IP30 IK04
Regelgeving
EN50131 Grade Grade 2
Certificering EN50131 Grade 2, INCERT, SBSC
Algemeen
Motion / event triggered video clip Triggered by control panel Linked to zone
Pre-recording 5 sec.
Post-recording 10 sec.
Video transmission Via panel ethernet connection
Detectie
Viewing angle 78 degrees
Upright target speed range 0.1 to 3.0 m/s
Crawling target speed 0.2 m/s min.
Camera
Video resolution 1080p (1280 x 1080)
Colour modes Colour / Black and white
Night illumination Up to 7 m
Frame rate 5 fps (640 x 540), 10 fps (1280 x 1080)
Video format RTSP
Elektrisch
Wiring Everon fast data bus (BUS3) (*) up to 6x Everon Blinx's of which max. 5x powered from BUS3
