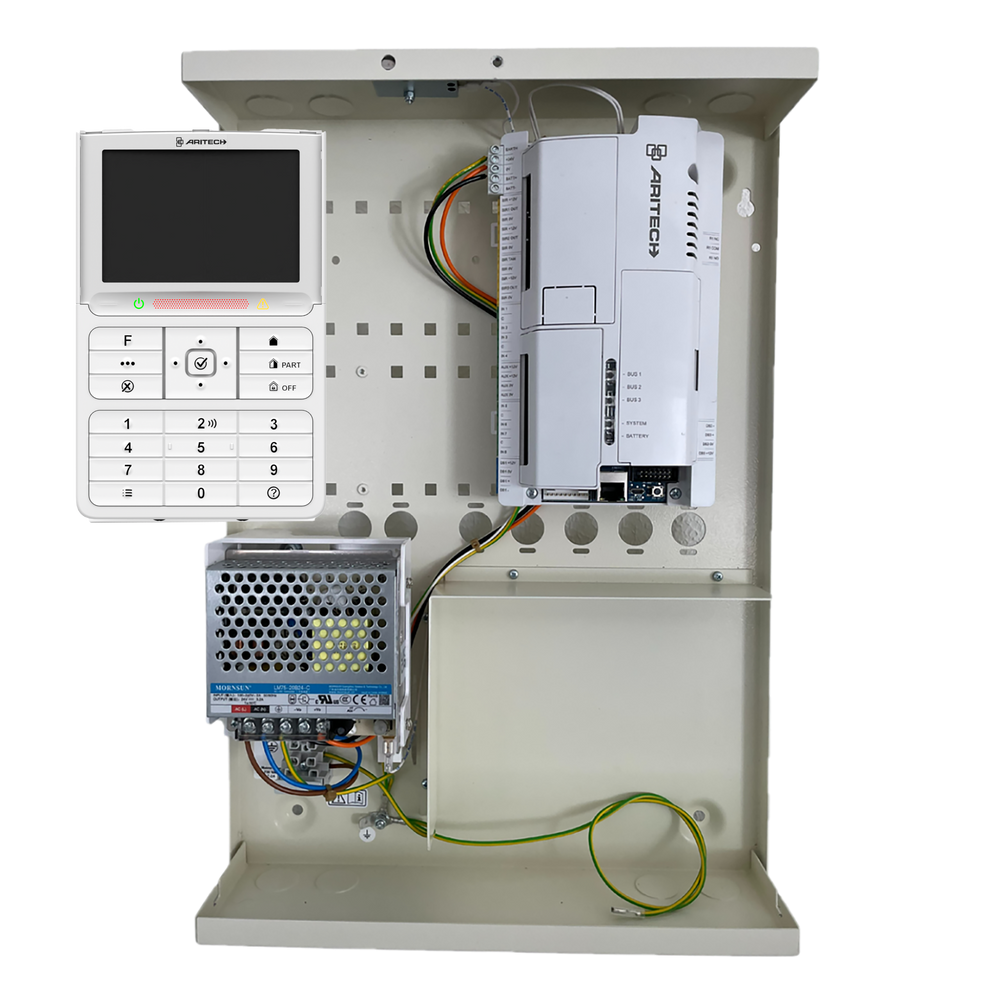

Aritech EVERON-STARTER

Always On. Always Aware. Kit ATS1700-MM including ATS1125

  • Kit with Panel — Keypad
  • 8 zones onboard
  • Max. 48 zones: wired, wireless or mixed
  • Economic input and output plug-in expansion
  • Up to 16 shock sensor inputs
  • 4 areas
  • Up to 2000 users without access controller and up to 65532 with access controller
  • USB port for local configuration
  • Multilingual - own language for 2000 users
  • IP Alarm reporting to OH-NETREC receiver (GPRS/3G/4G optional)
  • Integrated 10/100 Mb Ethernet connection
  • Standard access control without additional door controllers
  • Full access control using CDC4(-EN) door controllers
  • Auto arming - schedules - timed outputs
  • Live and scheduled panel Health Check through UltraSync for registered systems
  • Configure using browser on mobile, tablet, PC
  • Removable connectors and color coded connectors
  • Backward compatibility to Advanced
  • Smart Power supply
  • High speed Data bus

Everon is at the core of the complete security solution that you need. It offers exceptional integration, capability, reliability, installation and user experience. With Everon your security solution is connected to UltraSync Connected Services, through a fully secure cloud solution. Everon is backwards compatible and easy to migrate from legacy systems, including Advisor Advanced. It offers new APIs, allowing a seamless integration with 3rd party systems. For an even more complete solution, the video surveillance of Aritech is added to the Everon solution via the UltraSync ecosystem. All Advisor Advanced panels provide integrated access can control where end-user can be grouped. Each group has a separate definition for doors accessible as well as when access is allowed. Being a truly integrated system, additionally users can disarm areas when access to a door is granted. Everon supports up to 1000 intrusion zones, with an optimized cable management system and more power per zone. Everon can handle up to 112 access doors and supports the ATS734x /SIM GSM module for connectivity and cloud applications for remote management and diagnosis through UltraSync. Everon is built upon the successful Advisor Advanced panel: it delivers the highest standard of reliability. With strong cybersecurity levels, Everon is constantly updated based on today’s needs.

Kleur: Wit
€680,22incl. btw · €562,17 excl.
Op voorraad
Levertijd 2–3 werkdagen · gratis verzending vanaf €250 · 30 dagen retour
Specificaties
Systeem
Productlijn Everon
Type product Geintegreerde toegangscontrole
Type paneel Hybride
Kit Nee
Aantal bediendelen / lezers 8
Data-interfaces (DI) 7
Aantal alarmgroepen 256
Gespecificeerde kabel WCAT52 / WCAT54 or equivalent
Ingangen
Max. aantal ingangen 48
Onboard ingangen 8
Ingangen plug-in uitbreiding 8
ATS1202-ondersteuning 3
Uitgangen
Aantal uitgangen 128
Aantal onboard uitgangen 3 electronic outputs + 1 relay
Gebied
Aantal gebieden 4
Gebruikers / kaarten
Max. aantal gebruikers Up to 65532
Gebruikers met naam 1000
Max. aantal kaarten 2000 to 65532
Max. aantal PIN-codes 2000 to 65532
Toegangscontrole
Standaard deuren op controlepaneel 4
Deurgroepen 128
Etagegroepen 128
Intelligente deuren op 4-deurs DI's 28
Communicatie
Type transmissie onboard IP
Transmissie-uitbreiding GSM, GSM/GPRS, GSM/GPRS/IP, IP
Type databus RS485
Gebeurtenissen logboek
Alarmgebeurtenissen logboek 14500
Access event log 10000
Elektrisch
Bedrijfsspanning 24 VDC
Type voeding 230 VAC
Waarde voeding 230 VAC, -10 to +15%, 50 Hz
Stroomverbruik 650 mA max. at 230 VAC
Stroomverbruik moederbord 110 mA at 24 V (PSU), 160 mA at 12 V (battery)
Max. systeemstroom 950 mA at 13.8 V ±0.2 V
Max. stroom hulpvoeding 2500 mA at 13.8 VDC ±0.4 V
Zelfresettende zekeringen 3 (electrical)
Glaszekeringen 1 (mains power, T-2A 230 VAC, slow)
Fysiek
Fysieke afmetingen 315 x 445 x 85 mm
Netto gewicht 4.9 kg (without battery)
Kleur Wit
Materiaal Staal (geverfd)
Behuizing Middelgroot metaal
Omgeving
Bedrijfstemperatuur -10 to +55°C
Relatieve vochtigheid 95% noncondensing
Milieu klasse Class II, indoor
IP-classificatie IP31
Regelgeving
EN50131 Grade Graad 3, met sabotagekit
Conformiteit CE
Certificering EN50131 Grade 3, F&P, FG, IMQ, INCERT, NFA2P, SBSC
