Aritech EVN3700-RETRO-BUNDLE

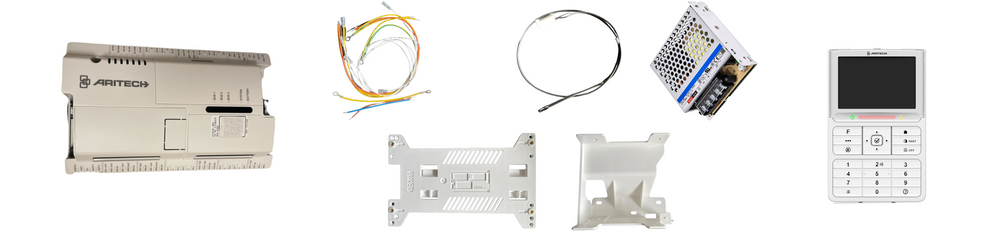

Always On. Always Aware. EVN3700-Upgrade kit

  • 1x Everon 3700-MBC (Panel PCB without housing)
  • 1x EVNx700-RETRO (Upgrade kit)
  • 1x ATS1125 (Keypad)

Everon upgrade kit Everon Upgrade Kit – EVN3700-MBC – ATS1125 – EVNx700-RETRO Upgrade with confidence using the Everon Upgrade Kit, a ready-to-install package designed for a smooth and efficient transition to the Everon platform. Unlike basic upgrade kits, this enhanced version includes a new ATS1125 keypad, making it a more complete solution for a seamless migration to Everon without the need for additional key components. For even more robust and secure alarm transmission, GSM communication modules are available, providing reliable backup connectivity to keep your system online even if the primary network fails.

€908,50incl. btw · €750,83 excl.
Op voorraad
Levertijd 2–3 werkdagen · gratis verzending vanaf €250 · 30 dagen retour
Specificaties
Systeem
Productlijn Everon
Type product Geintegreerde toegangscontrole
Type paneel Hybride
Kit Nee
Aantal bediendelen / lezers 8
Data-interfaces (DI) 7
Aantal alarmgroepen 256
Gespecificeerde kabel WCAT52 / WCAT54 or equivalent
Ingangen
Max. aantal ingangen 48
Onboard ingangen 8
Ingangen plug-in uitbreiding 8
ATS1202-ondersteuning 3
Uitgangen
Aantal uitgangen 128
Aantal onboard uitgangen 3 electronic outputs + 1 relay
Gebied
Aantal gebieden 4
Gebruikers / kaarten
Max. aantal gebruikers more than 2000
Gebruikers met naam 1000
Max. aantal kaarten 2000 to 65532
Max. aantal PIN-codes 2000 to 65532
Toegangscontrole
Standaard deuren op controlepaneel 4
Deurgroepen 128
Etagegroepen 128
Intelligente deuren op 4-deurs DI's 28
Communicatie
Type transmissie onboard IP
Transmissie-uitbreiding GSM, GSM/GPRS, GSM/GPRS/IP, IP
Type databus RS485
Gebeurtenissen logboek
Alarmgebeurtenissen logboek 14500
Access event log 10000
Elektrisch
Bedrijfsspanning 24 VDC
Stroomverbruik moederbord 110 mA at 24 V (PSU), 160 mA at 12 V (battery)
Max. systeemstroom 950 mA at 13.8 V ±0.2 V
Max. stroom hulpvoeding 2500 mA at 13.8 VDC ±0.4 V
Zelfresettende zekeringen 3 (electrical, 1.3A per use)
Glaszekeringen 1 (mains power, T-2A 230 VAC, slow)
Fysiek
Fysieke afmetingen 199 x 140 x 45 mm
Netto gewicht 435 g
Omgeving
Bedrijfstemperatuur -10 to +55°C
Relatieve vochtigheid 95% noncondensing
Milieu klasse Class II, indoor
IP-classificatie IP31
Regelgeving
Conformiteit CE
Certificering CE
