Aritech · ARITECH-000470 · Deurvergrendeling / toebehoren

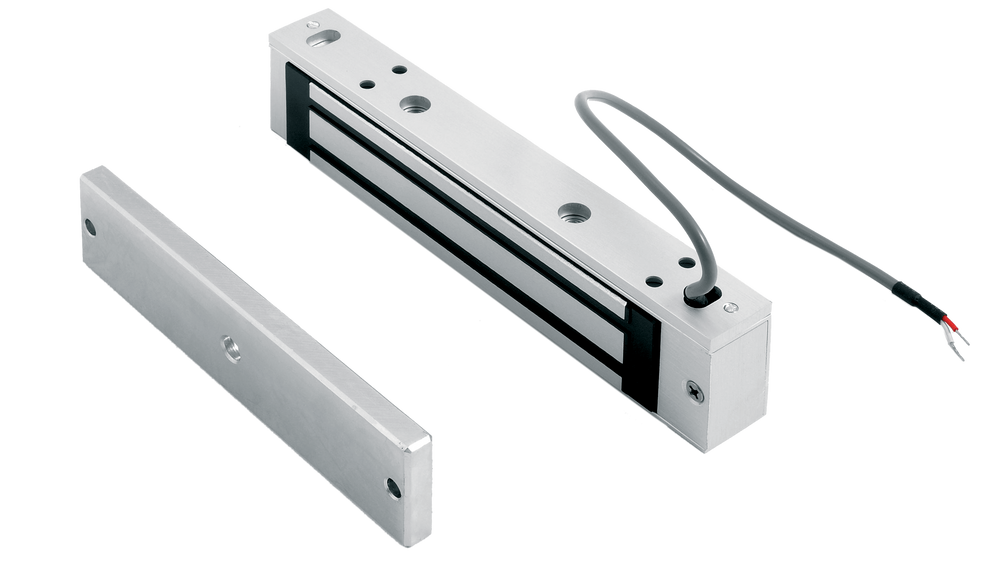

Kleur: AluminiumAritech FE110US
Eco Line Maglock 150 Kgf, unmonitored, surface mount
- 150 Kgf holding force
- Not monitored
- No residual magnetism
- 12/24 V dc jumper selectable operation
- Mounts easily with a minimum of tools
Eco Line mini magnetic lock. Surface mounting includes a quick mount bracket Internal non high security doors and security cabinets This state of the art electro-magnetic locking device provides positive, instantaneous door control. Filler plates, angle brackets, and other mounting adapters are available to satisfy a wide range of door and frame types and conditions.
€139,75incl. btw · €115,50 excl.
Op voorraadSpecificaties
Algemeen
Type product
Magnetic lock
Houdkracht
Houdkracht kgf (kilogram kracht)
150 kgf
Houdkracht N (Newton)
1500
Monitoring & status
Bewaakt
Nee
LED-indicator
Nee
Deurstatusschakelaar
Nee
Bewaakte omschakeling
Nee
Sensor magnetische vergrendeling
Nee
Elektrisch
Waarde voeding
12 / 24 VDC
Stroomverbruik
460 mA (+/- 2,5% @ 13,5 V)
Fysiek
Fysieke afmetingen
166 x 38 x 22 mm (W x H x D)
Kleur
Aluminium
