Aritech · ARITECH-000479 · Deurvergrendeling / toebehoren

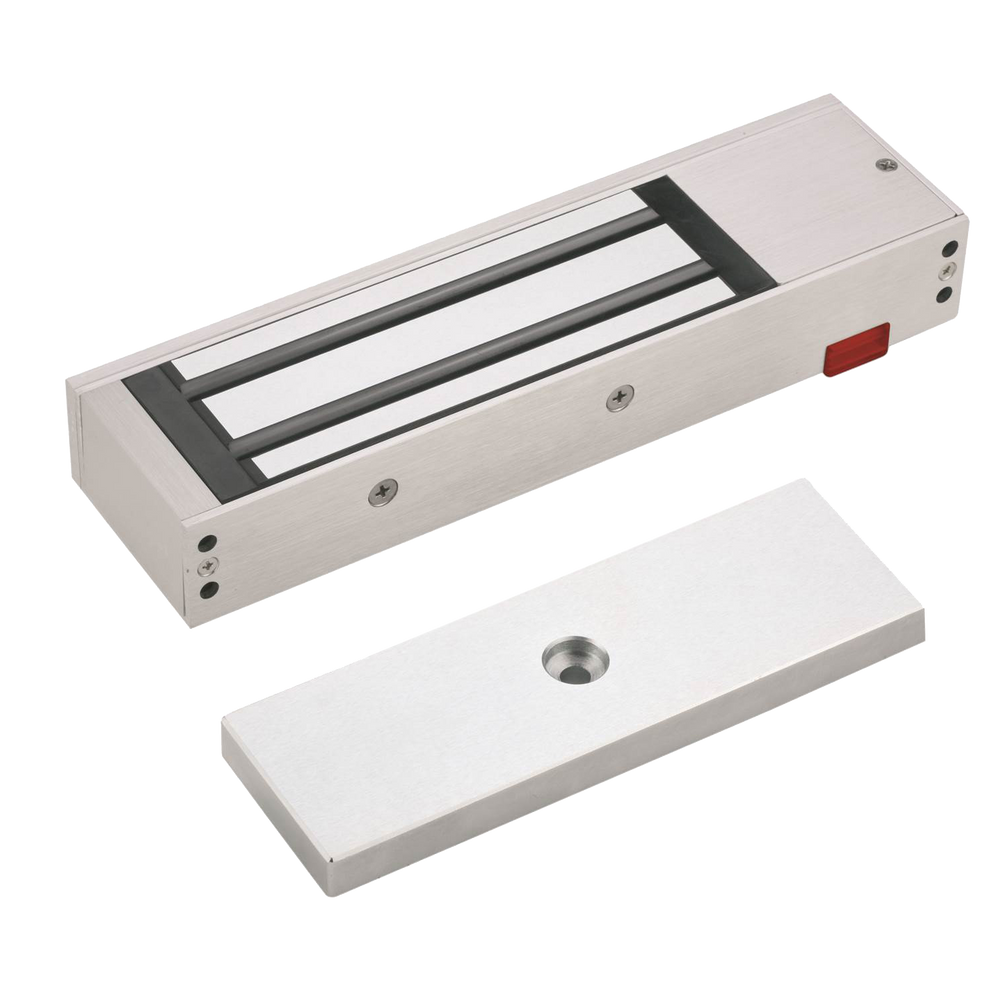

Kleur: AluminiumAritech FE371-N
Magnetic lock 5400 N, Mega-LED and Relay
- Strong design with high-end finish
- Corrosion proof: salt spray test (ISO 9227, ASTM B 117-90) at 35% for 96 hours
- No residual magnetism
- Built-in MOV surge protection
- L bracket and Z + L bracket set available
This electromagnet is part of the new series of magnetic locks equipped with a "Mega-LED” allowing to see the LED status from a much further distance. Security, safety and design using high quality materials, ensuring maximum strength without any residual magnetism or corrosion and proven holding force.
€262,00incl. btw · €216,53 excl.
Op voorraadSpecificaties
Algemeen
Type product
Magnetic lock
Houdkracht
Houdkracht kgf (kilogram kracht)
540
Houdkracht N (Newton)
5400
Monitoring & status
Bewaakt
Ja
LED-indicator
Ja
Deurstatusschakelaar
Nee
Elektrisch
Bedrijfsspanning
12 / 24 V
Stroomverbruik
500 / 250 mA
Fysiek
Fysieke afmetingen
268 x 73 x 40 mm
Netto gewicht
~4 kg
Kleur
Aluminium
Omgeving
Bedrijfstemperatuur
-40 to +60°C
Main features
Mounting
Surface
Locking monitoring
Large L shaped LED for long distance status + Relay
Door position monitoring
No
Corrosion Proof
Salt spray test. ISO 9227, ASTM B-117 90
Residual magnetism
Guaranteed no residual magnetism
Built-in MOV Surge Protection
Yes
