Aritech · ARITECH-000352 · Glas- en trildetectoren – Glasbreuk

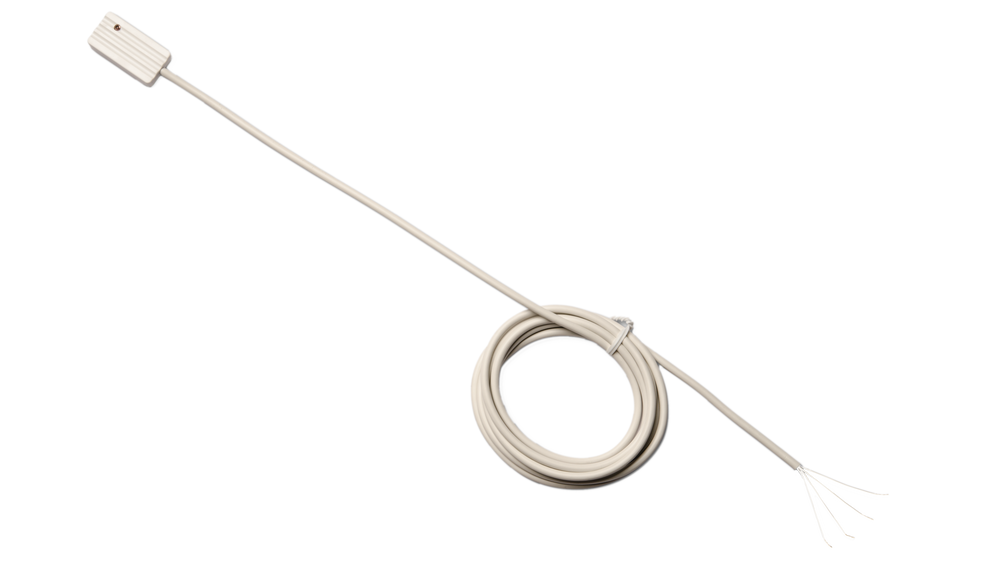

Kleur: WitAritech GS301
Passieve glasbreukdetector standaard glas - 6 m aansluiting op GS330
- Small and unobtrusive
- Latching alarm indication
- 2m radius protection
- Easy to install
- No adjustment
- Tamper proof
The glassbreak detector GS301 is designed to detect the specific ultrasonic frequency range produced by breaking glass. Knocks and other normal disturbances to a windowpane do not trigger an alarm. Suitable for use on standard window glass or plate glass the GS301 provide a 2 meter radius of protection. The detector may be fitted as close as 2 cm from the window frame and still provide a full 2 metre radius of coverage on standard glass. The detector is moulded into a plastic housing and delivered with 6m cable. They are featuring a built-in latch LED indicator for easy location of alarmed detectors.
€42,00incl. btw · €34,71 excl.
Op voorraadSpecificaties
Algemeen
Technologie
Piezo
Glassoorten
Vlak
Bereik
6 m radius
Sabotageschakelaar
Nee
Bedraad / draadloos
Bedraad / draadloos
Bekabeld
Elektrisch
Waarde voeding
3 to 16 VDC
Stroomverbruik
4 mA @ 6 VDC, 9 mA @ 12 VDC
Fysiek
Fysieke afmetingen
37 x 19 x 12 mm
Netto gewicht
50 g
Kleur
Wit
Type montage
Oppervlaktemontage
Omgeving
Bedrijfstemperatuur
-25 to +70°C
IP-classificatie
IP67
Regelgeving
Certificering
EN50131 Grade 2, VdS
