Aritech · ARITECH-000324 · Magneetcontacten – Opbouw
Kleur: WitAritech IM1640PSG

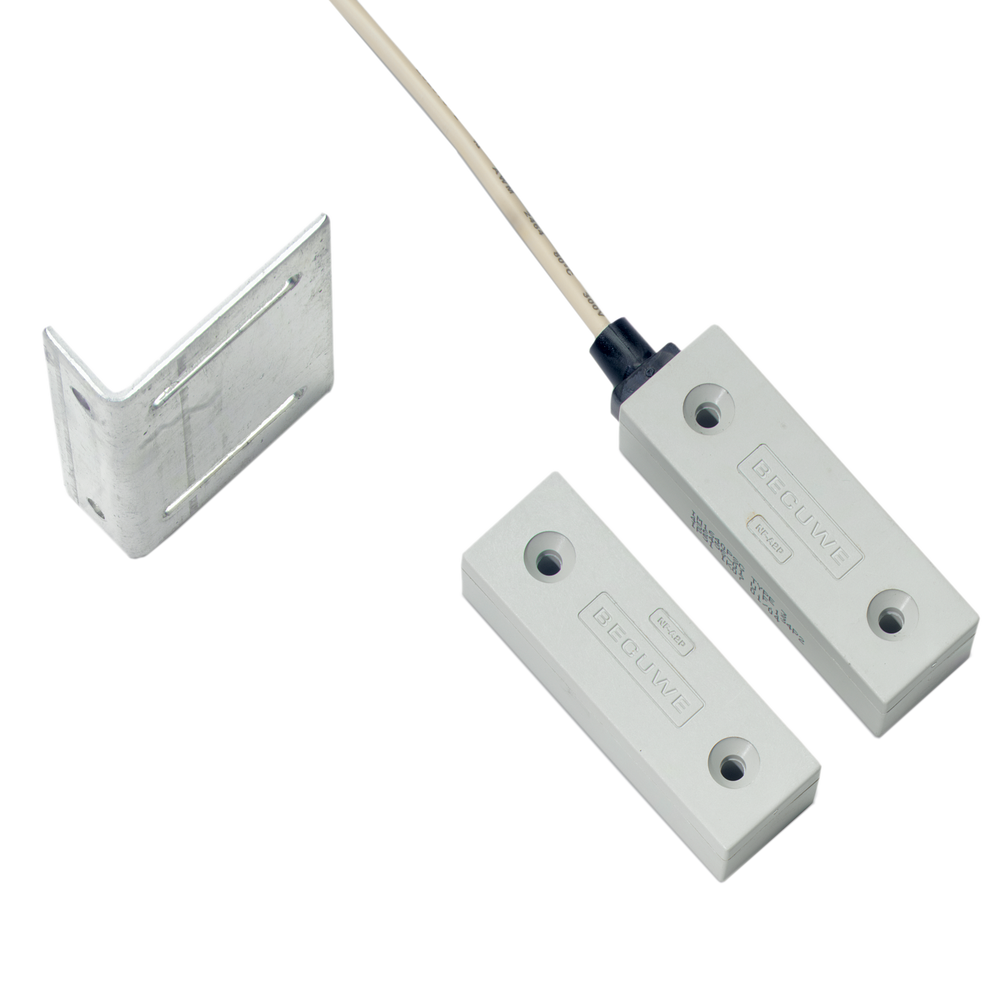

Surface mount contact, supervised cable, NFA2P
- Designed for use in harsh environments
- Magnet specifically designed to work on metal frames
- Tamper loop
- Version with armoured cable
The IM1640 series commercial surface mount contacts are specifically designed to work on metal frames. The contacts can be used in harsh environments. Special version with armoured cable and including junction box is available.
€18,26incl. btw · €15,09 excl.
Op voorraadSpecificaties
Algemeen
Type toepassing
Oppervlaktemontage
Type contact
NC
Aansluiting
4 wires, 85 cm
Bedraad / draadloos
Bedraad / draadloos
Bekabeld
Werkingsafstand
25 mm
Elektrisch
Spanning
max. 48 VDC
Fysiek
Fysieke afmetingen
72 x 23 x 19 mm (W x H x D)
Afmetingen magneet
23 x 72 mm
Afmetingen contact / sensor
23 x 72 mm
Kleur
Wit
Omgeving
Bedrijfstemperatuur
-10 to +55°C
