Aritech · ARITECH-000010 · Voedingen – 12V bewaakte voedingen

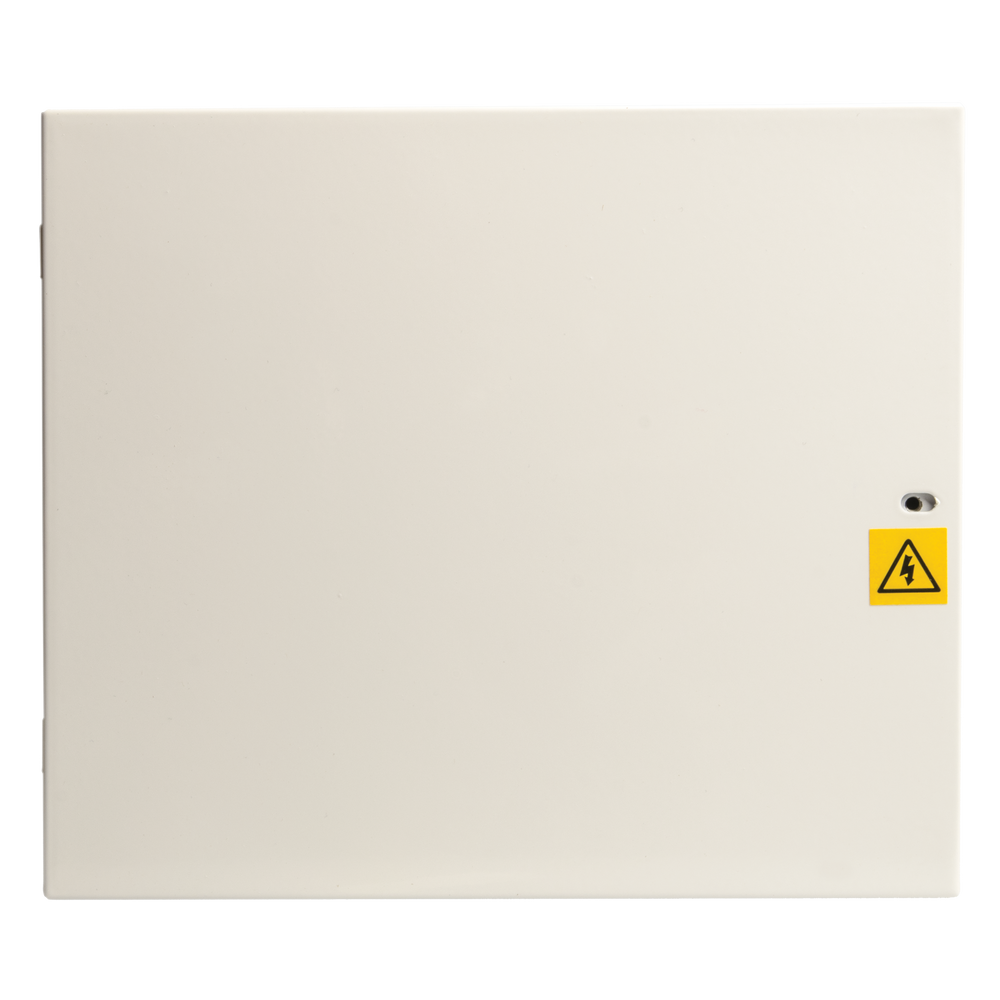

Kleur: WitAritech PM811N-G2
EN50131 Grade 2 voeding met lader, 12 VDC, 1 A
- Fault signals for loss of mains, power supply fault and battery low voltage warning
- Battery deep discharge protection
- Tamperswitch
- Protection against reverse battery connection
- LED's for comprehensive diagnostics
- Thermal protection of power circuitry
- Powder coated steel housing
- EN50131-6:2008 Grade 2 Type A certified
Suitable for use in systems designed to comply with EN50131-6:2008 Grade 2 and Environmental Class II requiring 8 Ah standby battery capacity. Comprehensive protection is built-in as standard including mains transient filtering, electronic output overload protection and fuses on the load and battery outputs.
€187,71incl. btw · €155,13 excl.
Op voorraadSpecificaties
Algemeen
Zekering(en)
Load: F1.0 A, Batt: F1.0 A
Diepontlading beveiliging
Battery disconnect @ 10.6 V battery terminal voltage
Beveiliging
Reverse battery connection protection
Elektrisch
Netspanningsingang
100 to 240 VAC
Uitgang
Voeding uitgangsspanning
13.8 VDC
Uitgangsrimpel
<400 mV pk-pk max. @ rated voltage
Netspanning uitgangsstroom
1 A
Batterij
Max. batterij capaciteit
8 Ah, 12 V
Accu uitgangsstroom
12 h, 0.6 A with 8 Ah battery
Batterij oplaadtijd
<72 h to 80%
Fysiek
Fysieke afmetingen
230 x 200 x 80 mm (W x H x D)
Netto gewicht
2 kg (without battery)
Kleur
Wit
Vormfactor
Stalen kast
Omgeving
Bedrijfstemperatuur
-10 to +40°C
Opslagtemperatuur
-20 to +80°C
Omgeving
EN50130-5 ; Klasse II - Binnen (algemeen)
Regelgeving
EN50131 Grade
Grade 2
Conformiteit
CE, REACH, RoHS 2, WEEE
Certificering
EN50131 Grade 2
Fysiek
Housing (steel) powder coated
1.2 mm
Regelgeving
Certifications
EN50131-6:2008 Grade 2 Type A
