Aritech · ARITECH-000014 · Voedingen – 12V geschakelde voedingen in kast

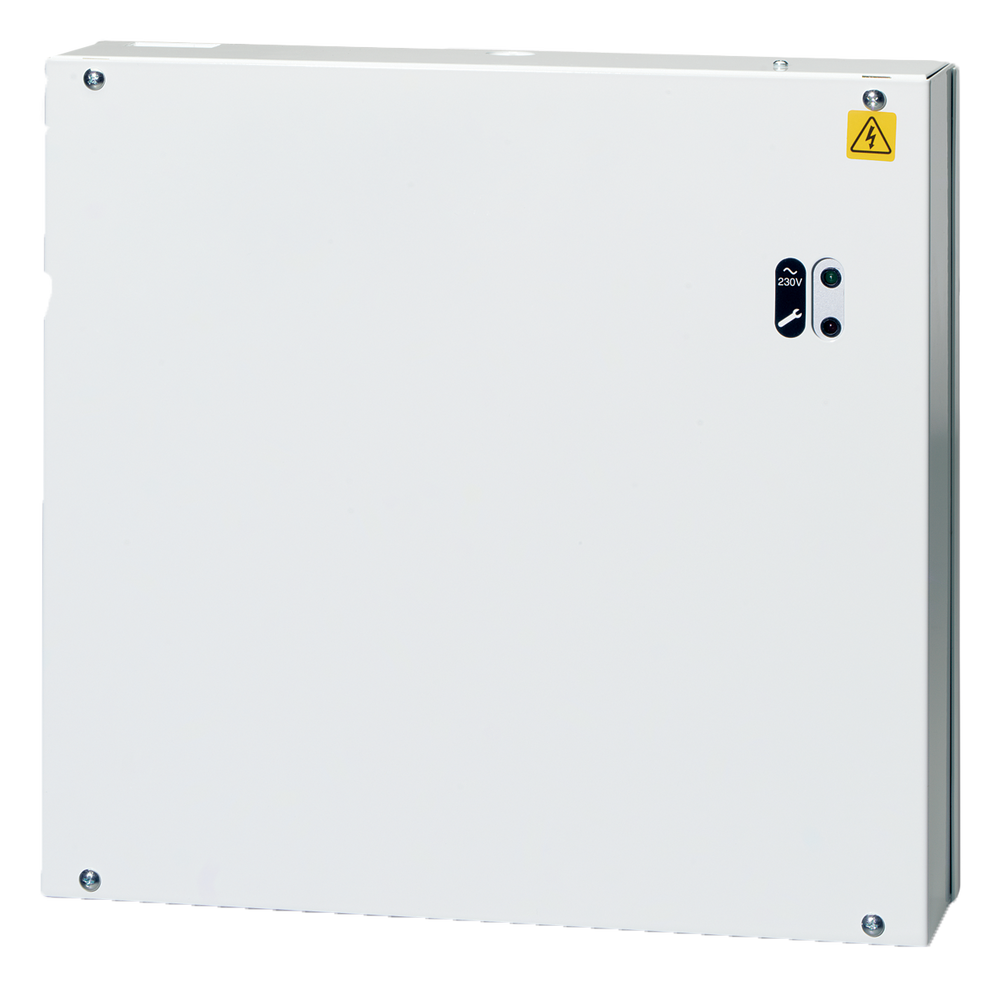

Kleur: WitAritech PM844-A
Voeding met acculader, 12 VDC, 4 A waarvan 3.5 A vrij beschikbaar
- Continuous full rated current to load
- Additional 0.5 A (average) to charge standby battery
- High efficiency electronics for reduced running costs and lower operating temperatures
- Modular construction for ease of maintenance and installation
- Full electronic short circuit and overload protection on load output under mains operation
- Lid opening tamper detection
- Increased room space for additional PCBs or cables
- Deep Discharge Protection
- 2 independent volt free fault outputs
- Reverse battery connection protection
- PSU fault indicator (Red LED)
- Battery Disconnected fault detection
High efficient switch mode 12 Volt dc Power Supply featuring Mains and Battery Monitoring with two independent volt free fault outputs. Full Rated Current to Load 4 Amp plus 0.5 Amp average for battery charging
€342,59incl. btw · €283,13 excl.
Op voorraadSpecificaties
Algemeen
Zekering(en)
230 VAC input 3.15 A, 12/24 V output 4 A
Elektrisch
Netspanningsingang
100 to 240 VAC
Uitgang
Voeding uitgangsspanning
13.8 VDC
Uitgangsrimpel
150 mV pk-pk max.
Netspanning uitgangsstroom
4 A
Batterij
Max. batterij capaciteit
18 Ah 12 V
Acculaadstroom
0.5 A
Fysiek
Fysieke afmetingen
355 x 330 x 80 mm (W x H x D)
Netto gewicht
4.30 kg (excluding battery)
Kleur
Wit
Vormfactor
Stalen kast
Omgeving
Bedrijfstemperatuur
-10° to +40° C
Opslagtemperatuur
-20 to 80°C
Relatieve vochtigheid
95% noncondensing
Regelgeving
Conformiteit
CE, REACH, RoHS 2, WEEE
