Aritech · ARITECH-000015 · Voedingen – 12V geschakelde voedingen in kast

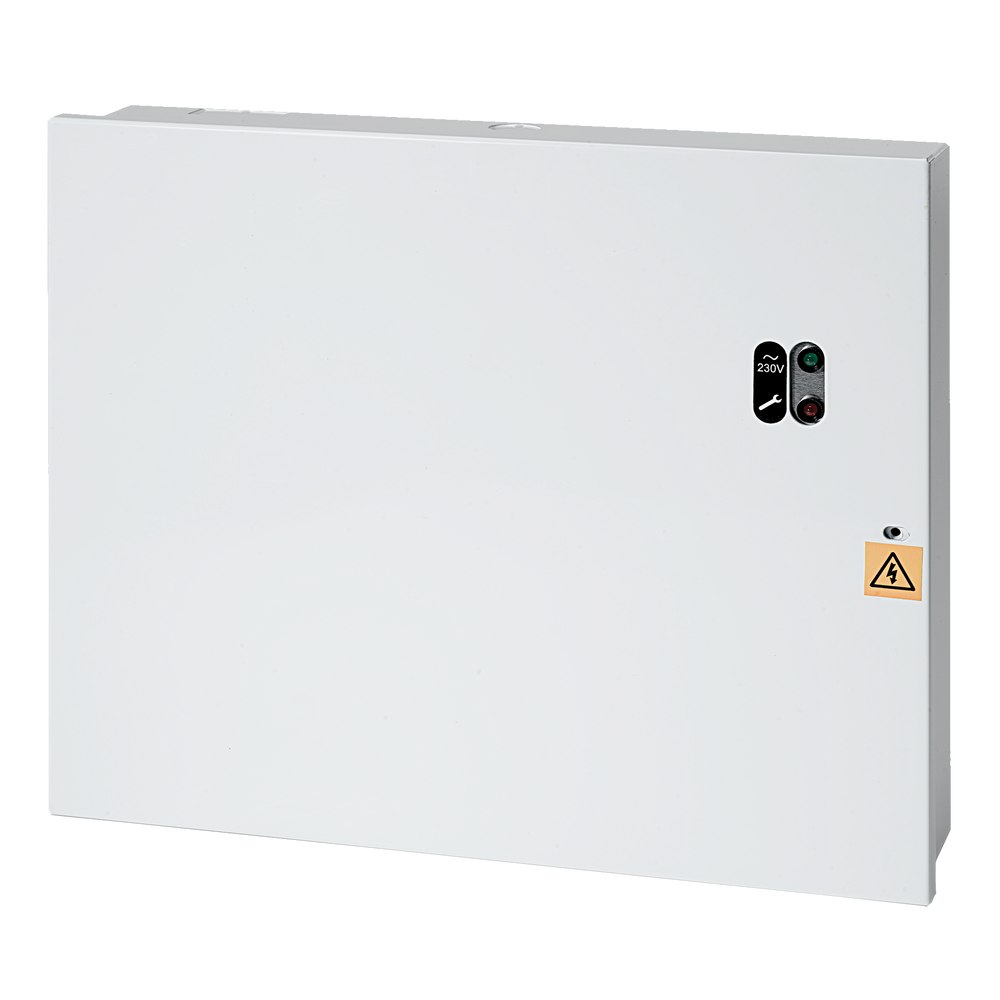

Kleur: WitAritech PM863
Voeding met acculader, 24 VDC, 3 A waarvan 2 A vrij beschikbaar
- Fault and mains present indicators
- Battery disconnect to prevent deep discharge
- Tamperswitch
- Fault outputs
- Mains and dc fuse
- Powder coated steel housing
This efficiency cost effective power supply is ideal for use in Fire, Access control and general security applications. Featuring a regulated 27.6 Vdc output supplying continuous full rated current to load plus additional current for charging two x 12V standby batteries. The highly efficient switch mode design ensures low operating costs, generates less heat and with a small physical size increases the room available for additional PCBs or cables. The modular construction simplifies maintenance.
€362,12incl. btw · €299,27 excl.
Op voorraadSpecificaties
Algemeen
Zekering(en)
230 VAC input 2 A, 12/24 V output 3 A
Elektrisch
Netspanningsingang
230 VAC, 50/60 Hz ±10%
Uitgang
Voeding uitgangsspanning
27.6 VDC
Uitgangsrimpel
100 mV pk-pk max.
Netspanning uitgangsstroom
3 A
Batterij
Max. batterij capaciteit
7.2 Ah (x2)
Acculaadstroom
1 A
Batterij oplaadtijd
20 hours
Accu verbreekspanning
19.6 ±0.2 VDC
Fysiek
Fysieke afmetingen
330 x 275 x 80 mm (W x H x D)
Kleur
Wit
Vormfactor
Stalen kast
Omgeving
Bedrijfstemperatuur
-10 to +40°C
Relatieve vochtigheid
95 %
Regelgeving
Conformiteit
CE, REACH, RoHS 2, WEEE
Elektrisch
Load output
2 A
Uitgangen
Open collector output
Open circuit on
Open collector output
Fault or Mains Fail
Open collector output
0 V, 100 mA
Housing (steel) powder coated
