Aritech · ARITECH-000361 · Glas- en trildetectoren – Glasbreuk

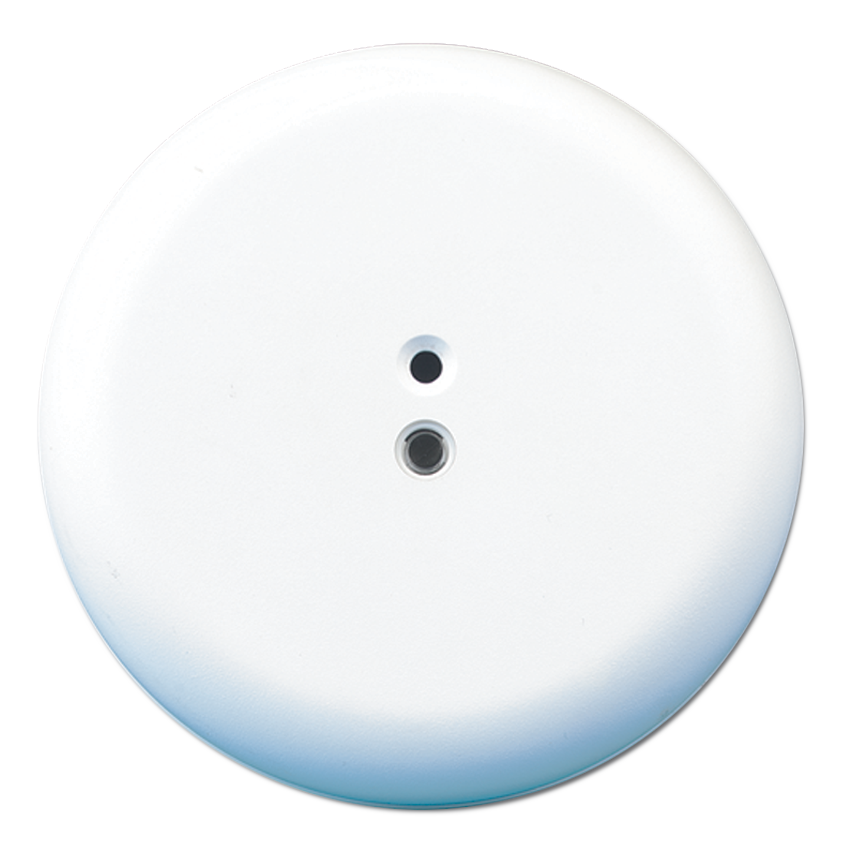

Aritech R5815NT-ART

ShatterPro™ 3 akoestische glasbreukmelder. Doorsn. 10 cm , Kleur wit

  • New "EZ" design for quick and easy installation
  • Pattern Recognition Technology for superior detection and false alarm immunity
  • Suitable for quiet occupied areas on a perimeter loop
  • Automatic test and user verification

The 5815NT-ART series ShatterPro3 is an advanced series of acoustic glassbreak sensors. In laboratory tests to compare reliability with the excellent proven standard of the ShatterPro2 (GS903N), the ShatterPro3 provides 250 percent better false alarm immunity. The coverage pattern can be easily adjusted to fit small or large rooms. Interference ouside the range will not cause false alarms. Using the patented "Pattern Recognition Technology", the sensor looks for patterns that are typical for breaking glass. This results into a greater false alarm immunity for the ShatterPro3 range. Available with a round or rectangular housing, ShatterPro3 can be tested without opening the sensor by using the hand-held glassbreak tester. A simple handclap feature allows end-users to confirm at any time that the ShatterPro3 is operational.

Kleur: Wit
€92,20incl. btw · €76,20 excl.
Op voorraad
Levertijd 2–3 werkdagen · gratis verzending vanaf €250 · 30 dagen retour
Specificaties
Algemeen
Technologie Acoustic
Glassoorten Gelaagd, Vlak, Getemperd, Bekabeld
Bereik 7.5 m radius
Relaisuitgang CO, open 4 sec on alarm
Sabotageschakelaar Ja
Bedraad / draadloos
Bedraad / draadloos Bekabeld
Elektrisch
Waarde voeding 9 to 16 VDC
Stroomverbruik 15 mA typical - 25 mA max
Fysiek
Fysieke afmetingen 20 x 100 mm (Ø x H)
Kleur Wit
Type montage Oppervlaktemontage
Omgeving
Bedrijfstemperatuur 0 to +50°C
Relatieve vochtigheid 0 to 90% noncondensing
