Home / Alarmsystemen / Draadloze alarmsystemen / Aritech RF-1110-07-3
Aritech · ARITECH-000332 · Draadloze alarmsystemen – Draadloze detectoren

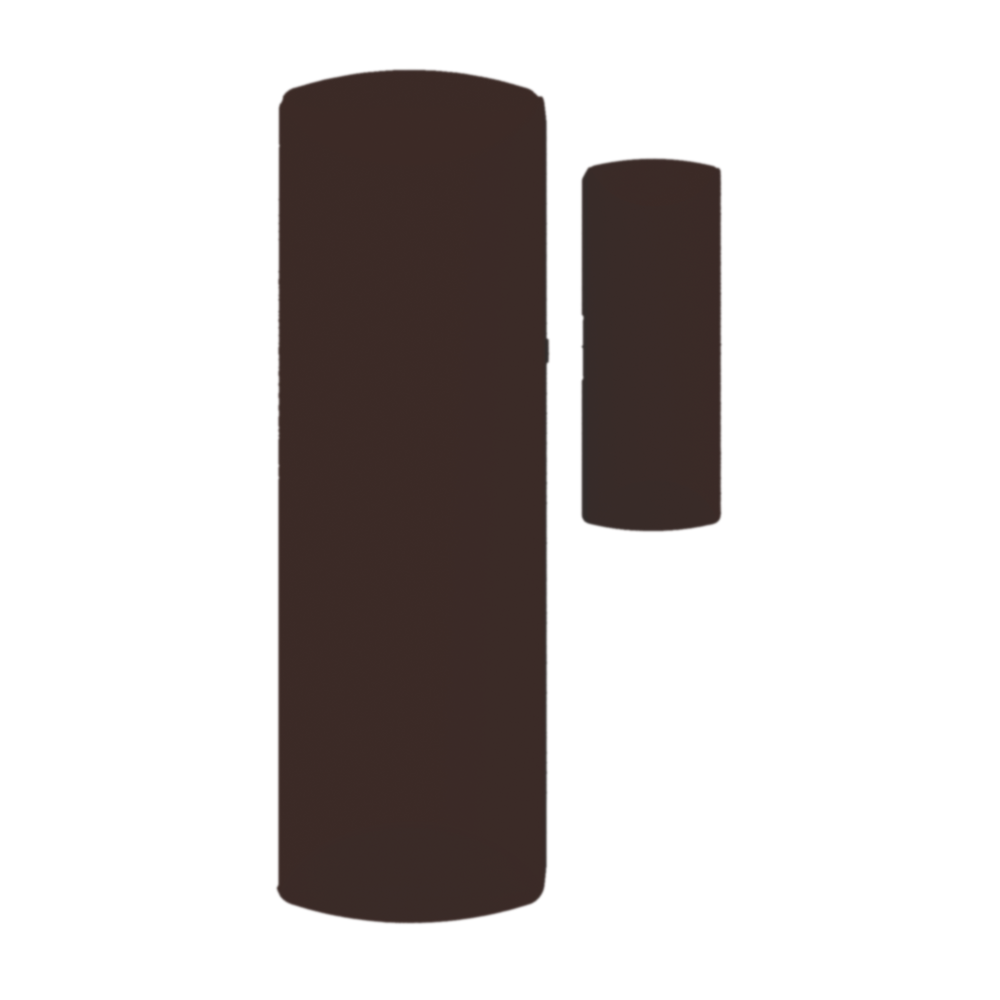

Aritech RF-1110-07-3

Micro DWS LoNa, EN/Incert approved, mahogany

  • Using LoNa technology
  • Compact design
  • 5 to 8 years battery life (based on usage)
  • EN/Incert certified

This micro DWS is a low profile magnetic contact that provides intrusion detection for residential and small businesses applications and is an extension of our LoNa product portfolio. This sensor can easily be installed on doors, windows, cabinets or other items that can be opened and closed. It's tamper detects unauthorized access to the inside of the sensor and also checks whether the sensor has been removed from its mounting surface. The sensor can be mounted using the double-side tape provided or screws as required for EN/Incert certified installations. The device also contains a replaceable lithium battery allowing it to run 5 to 8 years depending on the use case.

Kleur: Mahonie
€57,82incl. btw · €47,79 excl.
Op voorraad
Levertijd 2–3 werkdagen · gratis verzending vanaf €250 · 30 dagen retour
Specificaties
Algemeen
Type toepassing Oppervlaktemontage
Bedraad / draadloos
Bedraad / draadloos Draadloos
Draadloze frequentie 433 MHz LoNa
Bereik open veld 150 m
Werkingsafstand 15.5 mm maximum
Elektrisch
Stroomverbruik 15 mA (Max.), 1.4 µA (Quiescent)
Batterijen 3 V lithium, CR2032
Batterij levensduur 5 to 8 years
Fysiek
Afmetingen magneet 31 x 13 x 8 mm
Afmetingen contact / sensor 80 x 25 x 15 mm
Kleur Mahonie
Materiaal ABS
Omgeving
Bedrijfstemperatuur 0 to 49°C
Relatieve vochtigheid 5 to 95% noncondensing
Omgeving Binnen
Regelgeving
EN50131 Grade Grade 2
Conformiteit CE
Certificering EN50131 Grade 2, INCERT
Bedraad / draadloos
Compatibility Interlogix LoNa receivers
Power output -2 dBm EIRP
Make - Break distances non-ferromagnetic surface
Approach distance X (switch closed) 15 mm
Removal distance X (switch open) 17 mm
Approach distance Y (switch closed) 23 mm
Removal distance Y (switch open) 27 mm
Approach distance Z+/Z- (switch closed) 35/32 mm
Removal distance Z+/Z- (switch open) 38/36 mm
Elektrisch
Battery life 5 years (depending on usage)
Low voltage fault 2.2 V
Fysiek
Colour white and brown covers included
