Aritech · ARITECH-000108 · Magneetcontacten – Schootcontacten

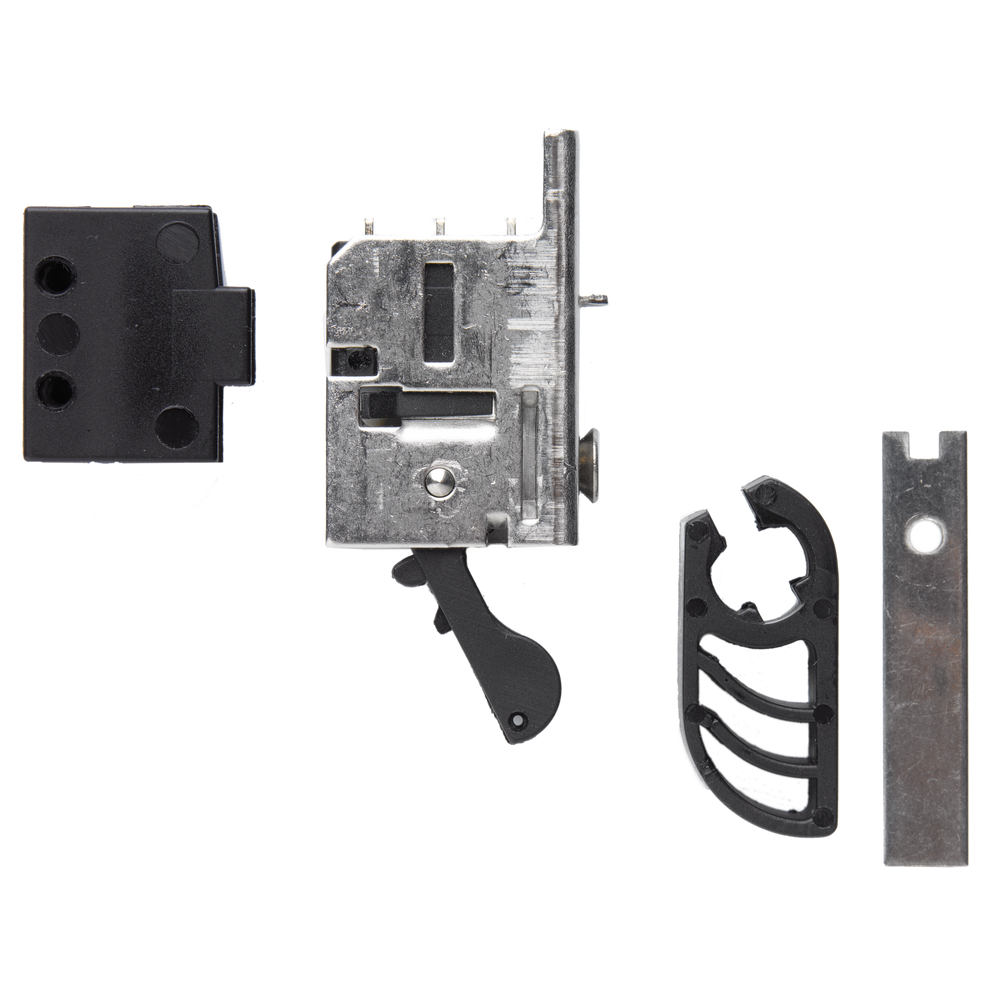

Aritech RK100-N
Nachtschoot contact voor binnendeuren
- For mounting on interior doors
- IP50
- VdS Class C certified
- 2,5 years warranty
The bolt contact is suitable for mounting at the door closing plate to allow the lock detection of the corresponding lock device. This product is only to be used for indoor applications. The activation/operation of the bolt contact is triggered by the lock bolt. The status of the bolt contact can be processed by the central unit of an intruder and hold-up system.
€33,66incl. btw · €27,82 excl.
Op voorraadSpecificaties
Algemeen
Accessoire groep
Accessoires voor deursloten
Type
Reserveonderdeel
Elektrisch
Bedrijfsspanning
max. 30 VDC (switch voltage)
Stroomverbruik
min. 5 mA, max. 300 mA (switch current)
Omgeving
Bedrijfstemperatuur
-25 to +70°C (at fixed cable), -5 to +50°C (at moveable cable)
Omgeving
Binnen
IP-classificatie
IP50
Regelgeving
Certificering
VdS
Contact
Termination
3 soldered terminals
Capacity
Max. 3 W/VA
Type
Change over
Switch Point
Cycles of operation
min. 30.000
Regelgeving
Security approvals
VdS Class II
