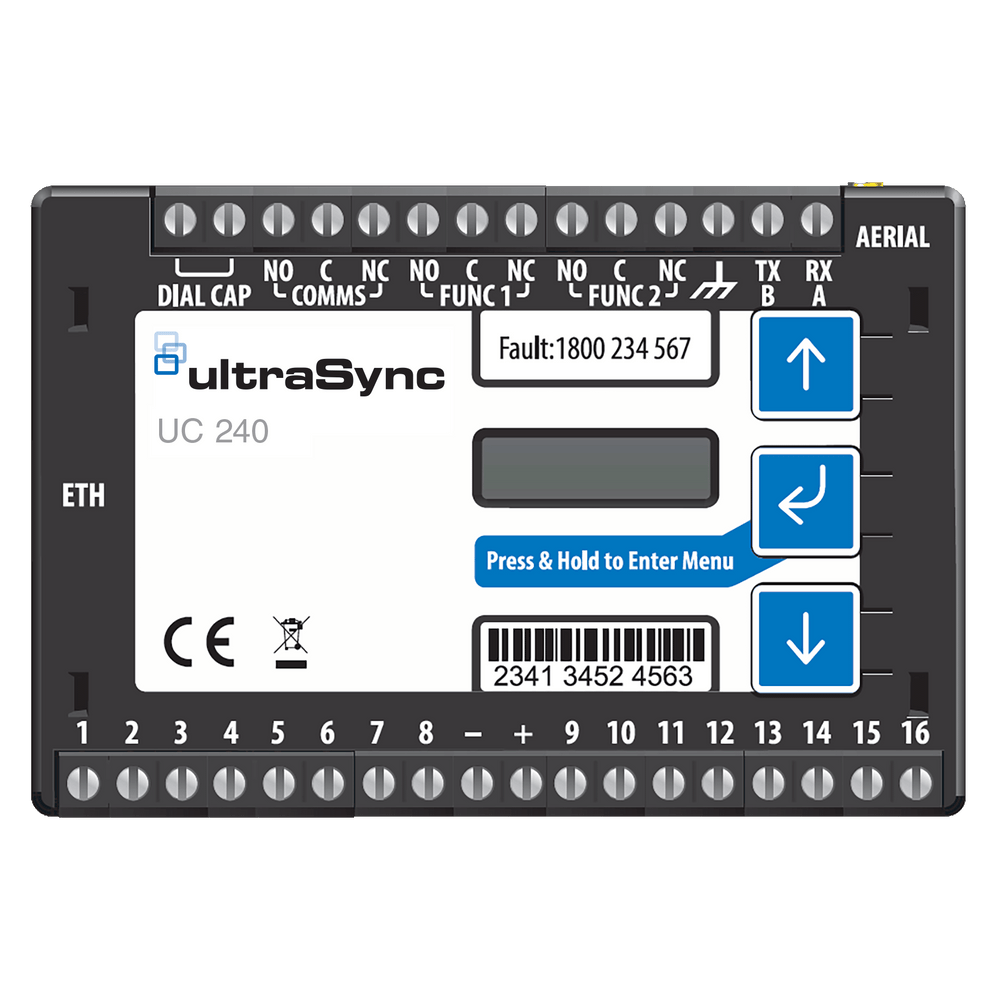

Aritech UC-240(SW)

UltraSync Communicator with IP and 4G/2G dual path suitable for both fire and intrusion panels with ultrasync private APN SIM card

• UltraSync Communicator with IP and 4G/2G dual path suitable for both fire and intrusion panels with ultrasync private APN SIM card

UC-240 (SW) UltraSync Communicator is a dual path alarm signalling unit for transmitting alarm signals from a customer’s alarm panel to a Central Monitoring Stations (CMS). The monitoring path is based on IP and SIM 4G/2G mobile technology. The unit is designed for use in both security and fire systems. • Dual-path monitoring for low, medium and high risk sites, covering intruder applications, fire and more. • These monitored alarm signalling devices are small enough to fit inside most alarm panels. They use two signalling paths – if the primary path is down, the secondary path kicks in. And if that happens, the secondary path will use the primary path reporting and polling times. • The primary path uses IP technology to send alarm signals over the customer’s network or broadband hub. • The secondary path uses 4G or 2G mobile connectivity – with dual SIMs for extra resilience. • EN50131 Grade 3 and EN50136 certified for intrusion systems. • EN54-21 certified for fire alarm systems. • 16 general purpose alarm inputs (Logic High = +2V to +30V/Logic Low = <1.3V) • 3 relay outputs • Unconnected state: Logic Low • Standard screw terminals • Programmable function output-for remote control of site devices • Line fault output-for status indication at site of alarm signalling path • Dial Capture with phone line simulation • Onboard RS232 or RS485 for direct panel interface to some panels • Converts dialler alarm systems into high security signalling devices • Alarm panel interface supports: Ademco Contact ID, Ademco Hi Speed, Ademco 4+1, Ademco 4+2, SIA 1/2/3 • Simple single push button pin learn • iOS and Android installer app • Using on board menu driven by push buttons
