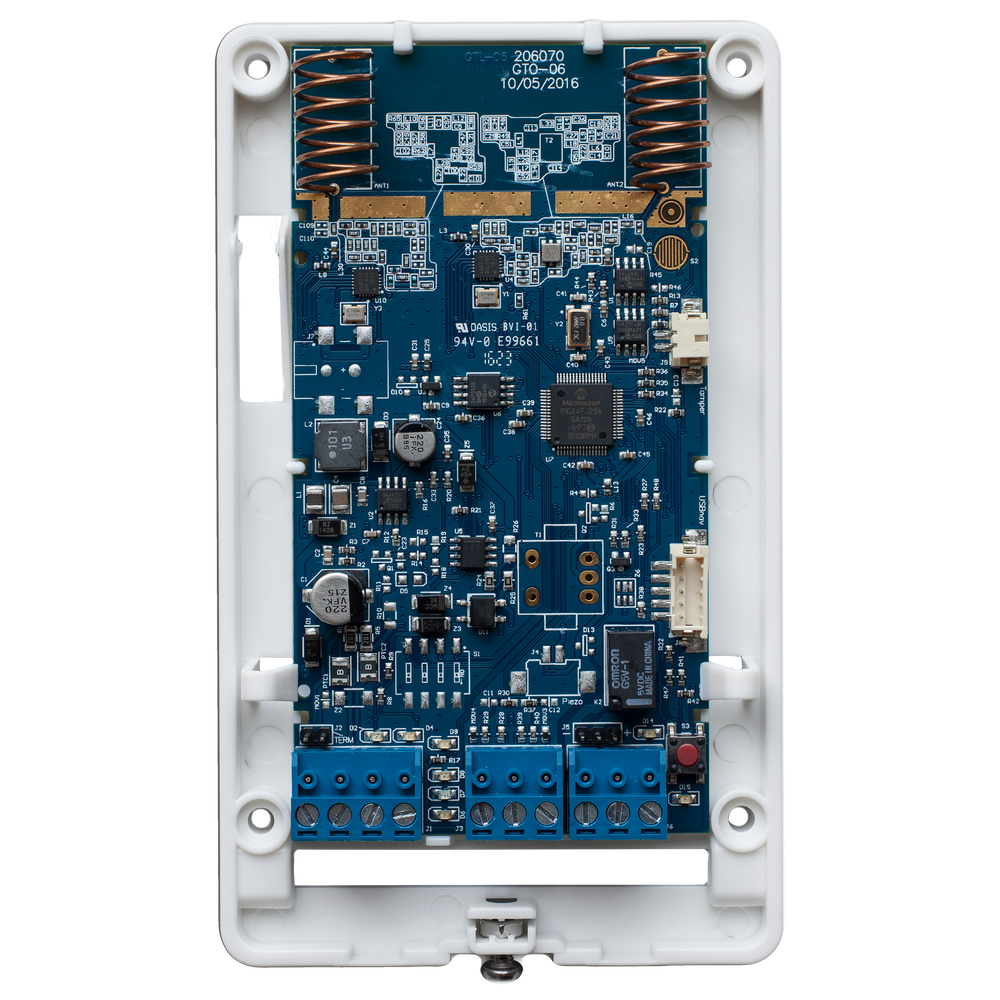

Aritech ATS1236

32 zones 433Mhz wireless receiver DGP

• Adds wireless capabilities to Advisor Advanced
• Two wired zone inputs
• One programmable SPDT Form C relay output
• Supports legacy 63-bit 433 MHz and new LoNa 433 MHz transmitters
• Learn-mode technology
• Removable terminals
• EN50131-1/EN50131-3/EN50131-6 Grade 2 Class II (pending) INCERT (pending)
• Firmware upgradeable

The ATS1236 wireless receiver adds wireless capabilities to the Advisor Advanced range of panels. The wireless DGP supports most of the legacy 433 MHz 63-bit transmitters as well as the new generation of 433 MHz LoNa transmitters of which the wireless communication is fully encrypted, avoiding unauthorized interference. Up to 32 wireless sensors and up to 16 keyfobs can be learned in. The ATS1236 wireless receiver provides two wired zone inputs and one programmable relay output. The wireless DGP needs to be installed outside the panel housing in order to assure a maximum wireless range. The 433MHz wireless solution will monitor the status and presence of each wireless device and will respond in case of an RF jamming condition.
