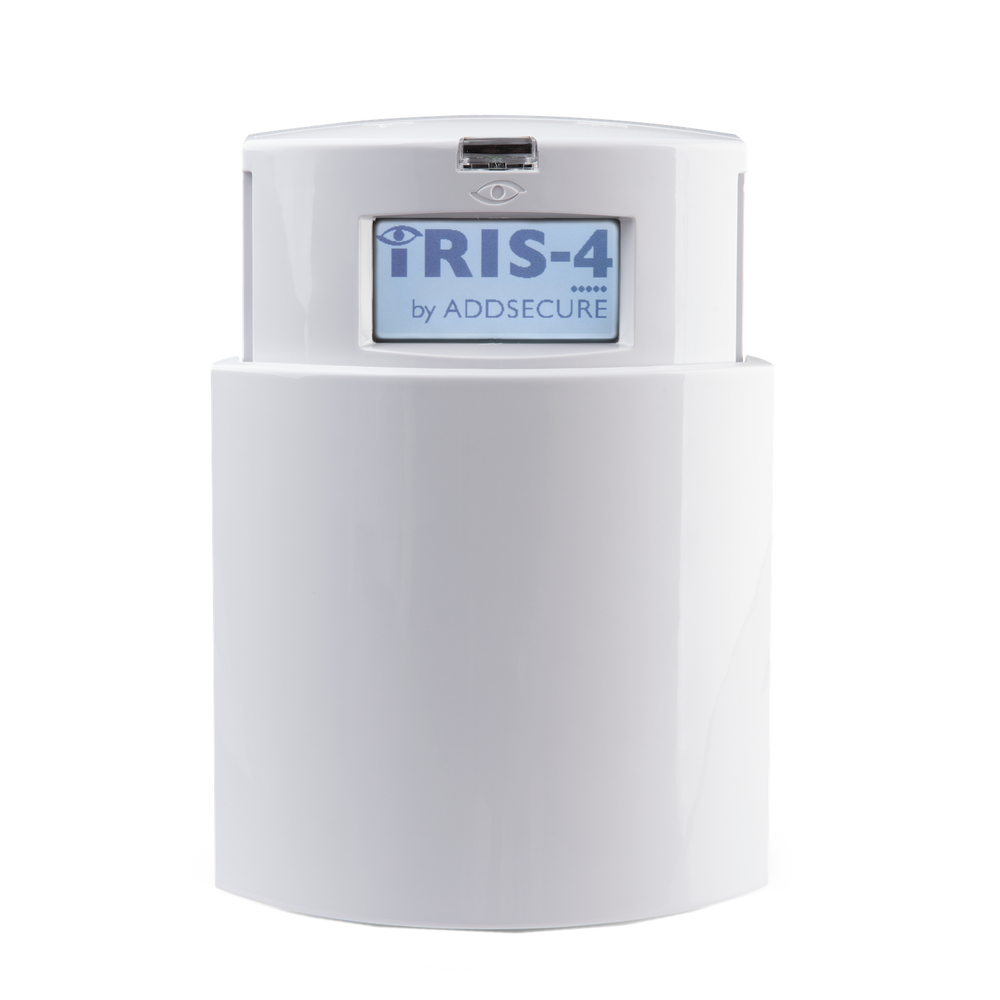

Aritech IRIS200-4

IRIS Touch 200 with 4G

• The IRIS-4 4 Series offers cost effective Alarm over IP (AoIP) for the commercial and residential sectors. All IRIS-4 4 Series diallers are certified as suitable for all Grade 4 systems with an Alarm Transmission System (ATS) configuration up to SP6 for single path, or ATS configuration DP4 for dual path (IRIS-4 4 Series only). The IRIS-4 4 Series is based on the successful IRIS Touch NG range of AoIP diallers with the same hardware and software used in all IRIS diallers; with the same level of security and features provided to military, governments, banks and commercial industry markets. It has a touch screen fitted as standard to allow configuration, get local alerts, and diagnostic/tests. Polling and alarm transmission are performed via 2/3/4G communications for this IRIS200-4 to the monitoring center using the IRIS Secure Apps monitoring software.
• • Dialler board • 2/3/4G antenna • Stylus for touch screen navigation • RJ11 cable • 18kΩ sense resistor for dial capture tamper detection
• The IRIS-4 4 Series complies with the following European Directives: • 2014/53/EU (Radio Equipment Directive) • 2013/35/EU (Electromagnetic Fields) • 2004/108/EC (CE directive) • 2002/96/EC (WEEE) • 2011/65/EC (ROHS)
