Aritech · ARITECH-000333 · Draadloze alarmsystemen – Draadloze detectoren

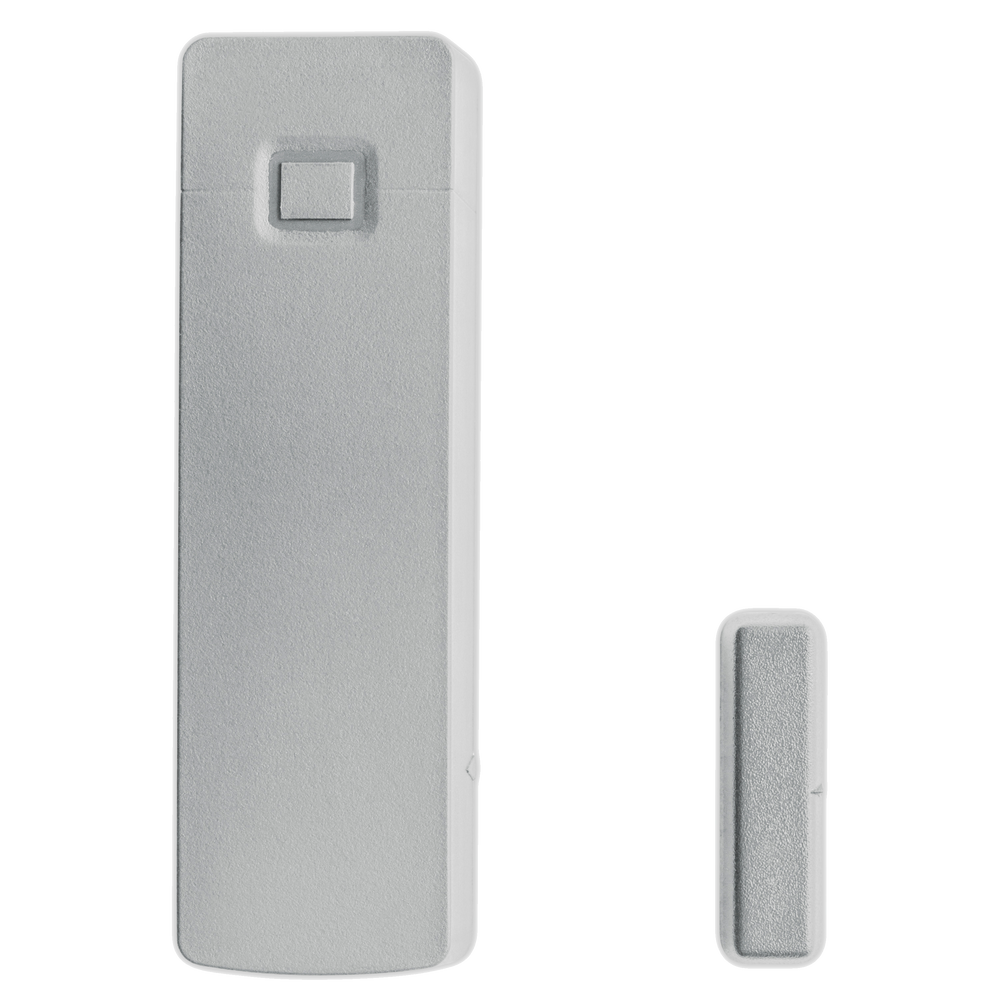

Kleur: WitAritech RF-DC101-K4
Wireless surface mount, white, 433 Mhz, 80+
- 80+ wireless protocol using 433 Mhz for improved indoor range
- 5-years battery life
- Battery pull-tab concept
- Selectable reed switches
- Additional terminal block
- Range of accessories : two types of spacers and a stronger magnet
- Holding EN and Incert certificates
In this series we are using KGS's 80+ wireless protocol in a 433 Mhz frequency set-up, which allows for a better wireless indoor range. This 80+ protocol helps ensure security approvals. This wireless door window sensor, which has 2 reed switches, protects anything that opens and closes such as doors, windows and cabinets. You can monitor any supervised contact in such a way that hardwired devices become wireless in a fraction of time. The sensor is equipped with a wall and cover tamper for additional security. This series comes in a white and a mahogany version and also has accessories in both colors.
€67,69incl. btw · €55,94 excl.
Op voorraadSpecificaties
Algemeen
Type toepassing
Oppervlaktemontage
Type contact
Reed switch
Bedraad / draadloos
Bedraad / draadloos
Draadloos
Draadloze frequentie
433 MHz LoNa
Bereik open veld
400 m
Werkingsafstand
7 to 13 mm
Elektrisch
Vermogensverbruik
max 70 mA at 3 V
Spanning
3.0 V
Contactvermogen
Maximum power output : 10 mW
Batterijen
1300 mAh (DL123A)
Batterij levensduur
>5 years with supervis. signal per 15 min. and 4 activations/hour
Fysiek
Afmetingen contact / sensor
101 x 31 x 28 mm
Netto gewicht
59 g
Kleur
Wit
Omgeving
Bedrijfstemperatuur
-10 to +55°C
Opslagtemperatuur
-34 to +60°C
Relatieve vochtigheid
0 to 90% noncondensing
Regelgeving
EN50131 Grade
Grade 2
