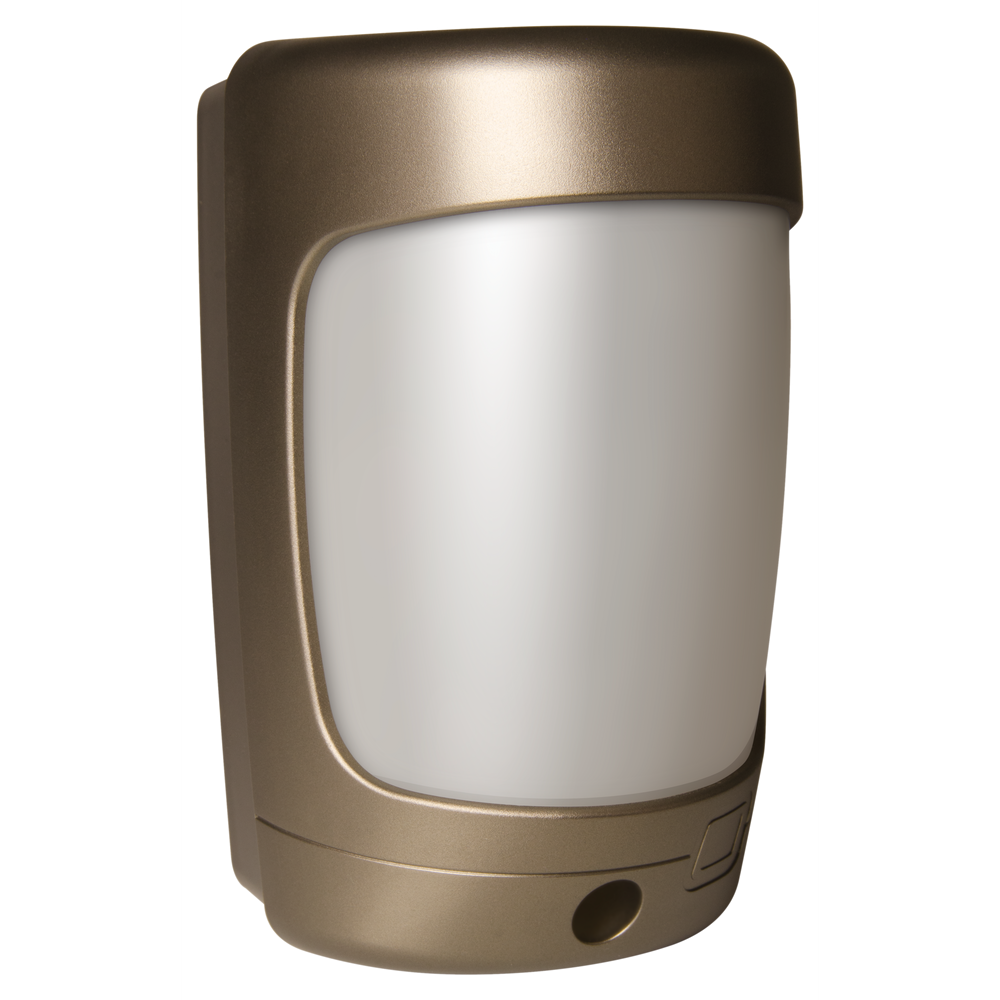

Aritech TX-2821-03-4
Aritech · ARITECH-000408 · Volumetrisch buitendetectoren – Volumetrisch buitendetectoren PIR

Aritech TX-2821-03-4

Draadloze Mini Passief Infrarood Buitendetector 868 Gen2 AM

  • New outdoor family containing wired PIR, 2 Dual Technology variants and wireless PIR
  • Attractive aesthetics
  • 14 to 70º detection angle
  • 90º pan & 45º tilt for flexible install
  • Sensor module is hidden
  • High dust and humidity resistance (IP65)
  • 3 years battery life, extendable to 5 years

The Wireless Mini Outdoor PIR is an outdoor motion sensor and alarm trigger that uses two independent passive infrared detectors. Both sensors must trigger to cause the detector to signal an alarm. It uses quad pyro technology to deliver precise, reliable presence detection. Programmable options include a variable pulse count and LED able/unable functionality. Moreover, the integral dual-axis tilt sensor allows 90º of pan and 45º of tilt, which increases the speed of the outdoor installation and provides incredibly accurate aiming of the detection pattern. The design has a neat appearance that gives no visible indication of the orientation of the detector head and totally hides the wiring. It blends smoothly into residential outdoor applications.

Kleur: Brons
€299,39incl. btw · €247,43 excl.
Op voorraad
Levertijd 2–3 werkdagen · gratis verzending vanaf €250 · 30 dagen retour
Specificaties
Algemeen
Technologie PIR
Type toepassing Muurmontage
Anti-maskering Nee
Ongevoelig voor huisdieren Nee
Camera Nee
Detectie
Max. detectiebereik 15 m
Openingshoek (kijkveld) 70°
Onderkruipbeveiliging Nee
Bedraad / draadloos
Bedraad / draadloos Draadloos
Draadloze frequentie 868 MHz AM
Elektrisch
Waarde voeding 2 x 3 V CR123 (up to 3 years), 3 x 3 V CR123 (up to 5 years)
Stroomverbruik 50 mA
Batterijen 3 x CR123
Batterij levensduur 5 years
Fysiek
Fysieke afmetingen 70 x 120 x 75 mm (W x H x D)
Netto gewicht 218 g
Verzendgewicht 351 g
Kleur Brons
Materiaal Hoge impact ABS kunststof met HDPE dekking, UV gestabiliseerd
Montagehoogte 3 to 6 m
Omgeving
Bedrijfstemperatuur -25 to +65°C
Omgeving Buiten
Detectie
Coverage 14° to 70° detection angle, 15 x 13 m
Adjustment 90° pan, 45° tilt
Fresnel lens 20 zones for each detection element, which can be masked with the curtain sliders
Customized optics Double silicon shielded quad element eliminates 50,000 lux of white light
Pulse count 1 or 2
Temperature compensation Analogue (thermistor) and digital sensitivity adjustment
Control Digital microprocessor with nonvolatile memory
Mounting height Variable up to 6 m / Optimum height 3 m for full range
Algemeen
LED Red Walk test indicator
